XP Power Switching Power Supply, EPL225PS18 , 18V dc, 12.5A, 225W, 1 Output, 85 → 264V ac Input Voltage

Name: XP Power Switching Power Supply, EPL225PS18 , 18V dc, 12.5A, 225W, 1 Output, 85 → 264V ac Input Voltage
Brand: XP Power
SKU: 1227636

RS Stock No.: 122-7636Brand: XP PowerManufacturers Part No.: EPL225PS18

View all in Switching Power Supplies

Technical Documents

Specifications

Brand

XP Power

Output Voltage

18V dc

Output Current

12.5A

Power Rating

225W

Number of Outputs

Input Voltage

85 → 264V ac

Mounting Type

Chassis Mount

Package Type

Open Frame

Length

101.6mm

Width

50.8mm

Medical Approved

Yes

Depth

29.6mm

Minimum Temperature

-20°C

Weight

195g

Maximum Temperature

+70°C

Country of Origin

Taiwan, Province Of China

Product Details

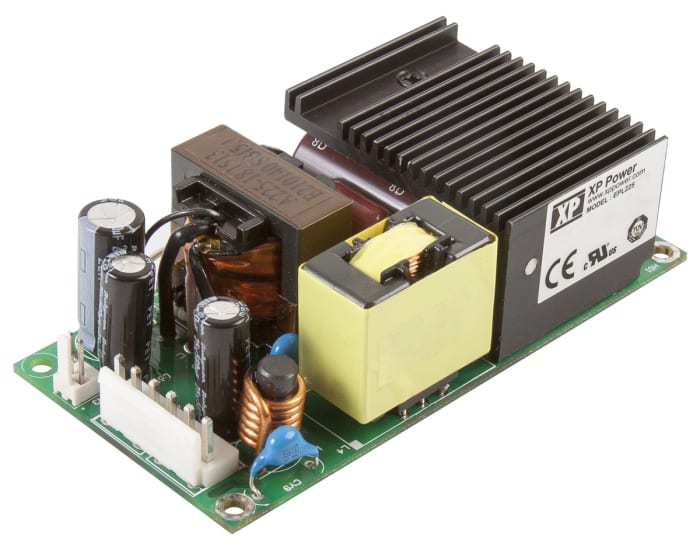

XP Power - EPL225 Series Switch Mode Power Supply

XP Power EPL225 series of switch mode power supplies has been designed to maximise efficiency across the load range, while minimising no load power consumption. This allows for optimal heat dissipation, which leads to a reduction in running costs and keeps the installation to adhere to latest environmental goals & legislation.

The XP Power EPL225 series is a small but versatile series which can be adopted into a wide range of ITE & industrial applications.

Features and Benefits

150 W convection / 225 W forced-cooled ratings.
ITE approved.
High-power density.
12 V output fan.
Up to 95% efficiency.
2" x 4" footprint, with a 1.26" low profile.
