Technical Documents
Specifications
Brand
RS ProProduct Type
Temperature Transmitter
Output Type
2-Wire
Diameter
43mm
Minimum Temperature Input
-200°C
Maximum Temperature Input
1760°C
Series
TX203TC
Depth
21mm
Maximum Supply Voltage
30V dc
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
70°C
Hazardous Area Certification
No
Standards/Approvals
IEC 61000-4-4, EMC - BS EN 61326, IEC 61000-4-2, IEC 61000-4-5, IEC 61000-4-3
Country of Origin
United Kingdom
Product Details

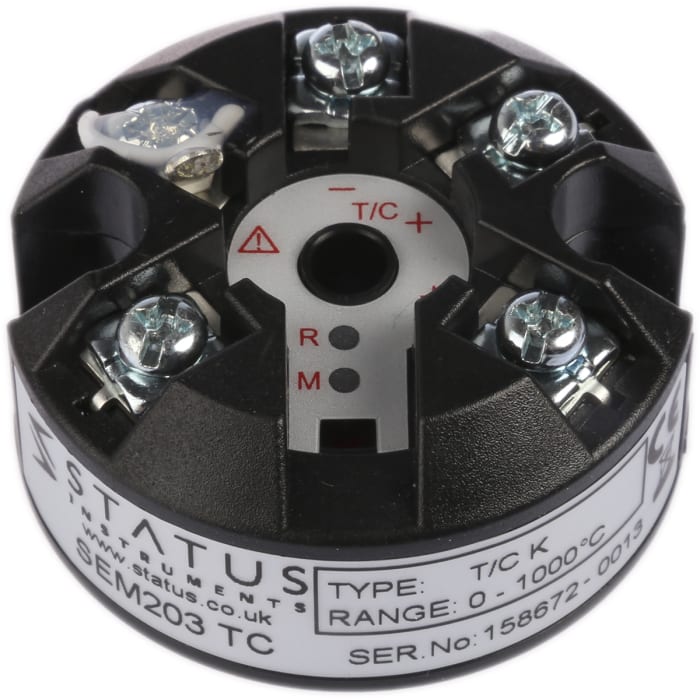

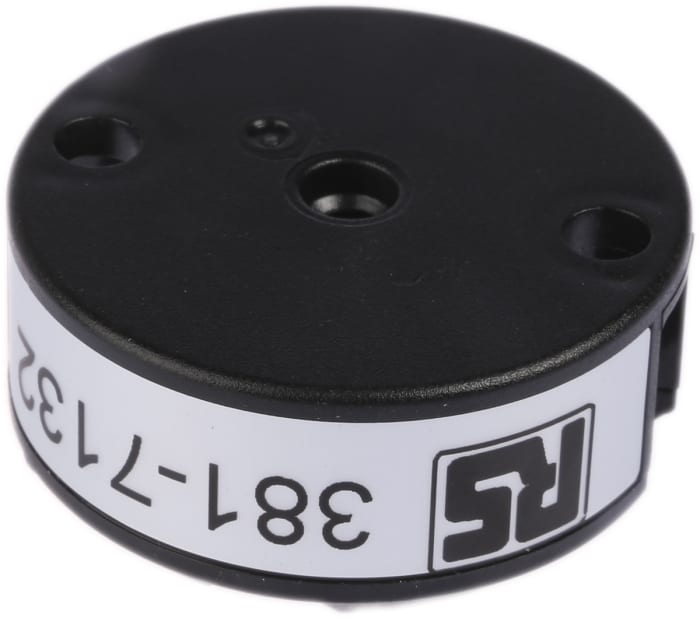

This temperature transmitter from our RS PRO series is an excellent solution for heat-sensitive applications. It's intended for use with a temperature sensor to help monitor and regulate temperature changes.
Operating on a supply voltage of 8 V DC to 30 V DC, it's compatible with most industrial equipment used in manufacturing. It has an adjustable temperature range of -20°C to +70°C with a push-button configuration that makes this simple; you can set the temperature range in 10 seconds. Whats more, this transmitter features drift free digital technology for added reliability. It's designed for thermocouple type sensors which can be easily connected, only two copper wires are needed.
This product meets our high standards for safety and durability. It is RoHS compliant, so no hazardous substance is present in excess of 0.1%. Temperature transmitters are a crucial component for safe operation.
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Stock information temporarily unavailable.
€ 105.33
€ 105.33 Each (Exc. VAT)
1
€ 105.33
€ 105.33 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 105.33 |
| 5 - 9 | € 100.06 |
| 10+ | € 94.80 |
