Technical Documents
Specifications
Brand
RS ProProduct Type
Thread Pitch Gauge
Thread Type
Imperial
Number of Blades
30
Maximum Imperial Measurement
42TPI
Minimum Imperial Measurement
4TPI
Minimum Metric Measurement
4mm
Maximum Metric Measurement
42mm
Standards/Approvals
CE
Country of Origin
China
Product Details

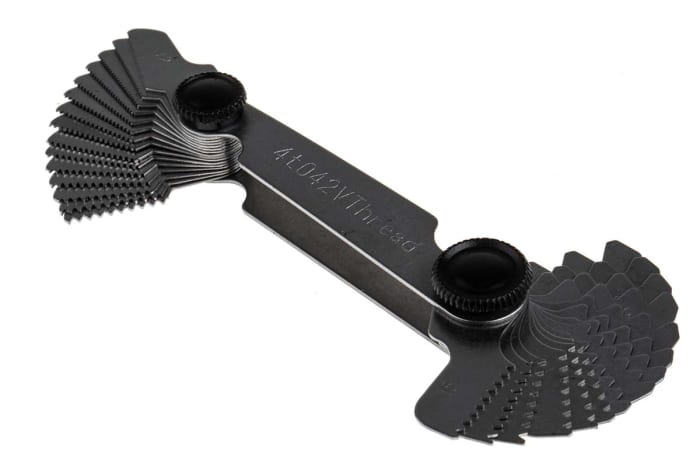

This penknife-style thread pitch gauge from RS PRO lets you quickly measure the distance between the threads of screws, nuts and bolts. With 30 milled steel blades that can measure imperial thread pitches between 4 and 42 threads per inch (TPI), this gauge lets you determine the gradient of a thread without the need for calculations.
To measure a thread pitch, simply match the blade teeth on the gauge with the threaded portion of a workpiece. Thanks to the narrow profile of each blade, you can use the gauge for both internal and external thread pitches on threads with an angle of 60°.
The gauge's sturdy steel case features spring-loaded knurled knobs at each end to secure the blades during use. They then fold into the case for protection and storage when not in use.
This thread pitch gauge is useful for categorizing threads and ensuring that external threads match their internally threaded counterparts.
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
