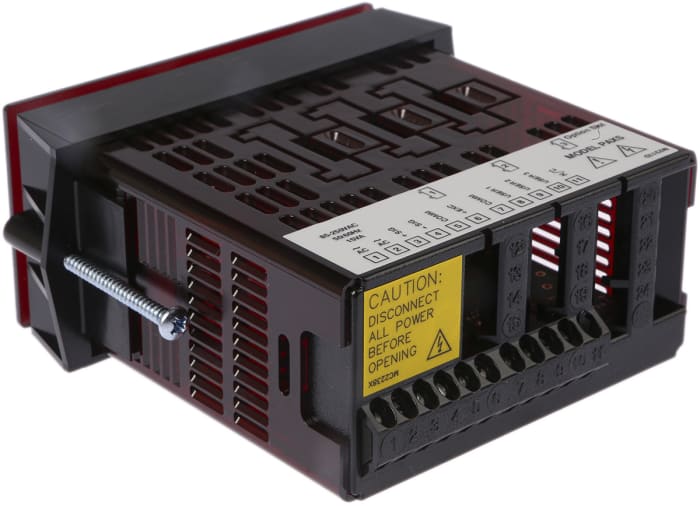

Red Lion PAX LED Digital Panel Multifunction Meter for Strain, Voltage, Temperature, Current, 45 mm x 92 mm
Technical Document
Specifications
Brand
Red LionProperties Measured
Strain, Voltage, Temperature, Current
Product Type
Digital Panel Multifunction Meter
Display Type
LED
Cutout Height
45mm
Depth
49.53mm
Cutout Width
92mm
Number of Digits
5
Digit Height
14.22mm
Minimum Operating Temperature
0°C
Maximum Operating Temperature
50°C
Standards/Approvals
CE, RoHS
Meter Type
Electronic
Series
PAX
Minimum Measurement
-19999
Country of Origin
United States
Product details
PAX Analogue Input Panel Meter
The PAX analogue panel meters offer many features and performance capabilities to suit a wide range of industrial applications. Available in 5 different models to handle various analogue inputs, including DC voltage/current, AC voltage/current, process, temperature and strain gage.
5-digit (14.2 mm) red sunlight readable display
Variable intensity display
16 point scaling for non-linear processes
Programmable function keys/user inputs
9-digit totalizer (integrator) with batching
Optional custom units overlay with backlight
Crimson® programming software
NEMA 4X/IP65 sealed front bezel
Models available:
PAXH- AC true RMS voltage/current input (905-5655)
PAXP- Process input (905-5686 & 905-5680)
PAXS- Strain gage/bridge input (905-5696 & 905-5706)
Red Lion
Stock information temporarily unavailable.
€ 594.41
€ 594.41 Each (Exc. VAT)
1
€ 594.41
€ 594.41 Each (Exc. VAT)
Stock information temporarily unavailable.
1
