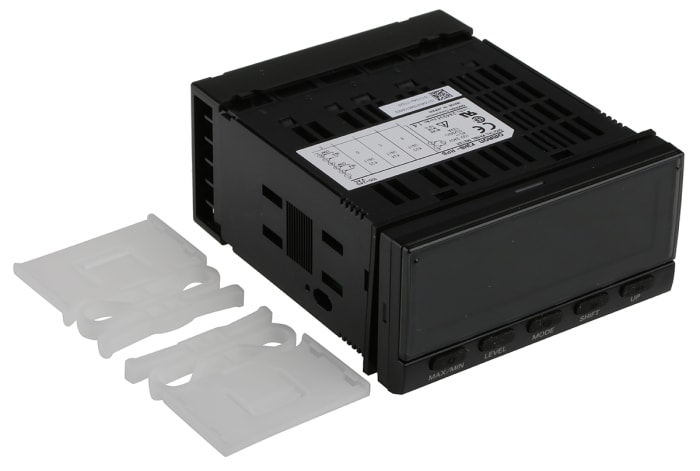

Omron K3HB LED Digital Panel Multifunction Meter for Speed, Time, 45 mm x 92 mm

Omron Rotary Pulse Indicator

The Omron rotary Pulse indicator is performed high-speed rotation measurement and passing time measurement. An encoder is used to provide a Pulsed PNP input, the meter then calculate based on this to provide the operation required. It is an indicator with a digital input feature along with a clear and easy-to-use colour-change display. It provides high-speed Pulse measurements ranges between 0.5mHz and 50kHz of the rotary encoder or ON/OFF Pulse signals.
Omron K3HB Series
This new range of Process Panel Meters replaces the K3N Series. K3HB series consists of process, temperature, weighing and linear sensor indicators. These indicators with analogue inputs or Pulse inputs feature a clear and easy-to-use colour-change display and all have IP66 housing. Extra functionality can be added using option boards (3 maximum).
Dimensions: 101.2 x 112 x 48 mm. Panel cut-out: 92 x 45 mm

Features and Benefits

• Equipped with a position meter for monitoring operating status trends
• Supply voltage rating is 100VAC to 240VAC
• External event inputs allows using various measurement and discrimination applications
• Programmable bar graph to show magnitude
• Colour change display to give process status
• Cut-out height is 45mm, width of 92mm and depth of 112mm
• The minimum temperature is -10°C and 55°C

Certifications

• IP66 housing
• UL approved
• CE certified
• NEMA 4X
• cURus certified
