Murata Power Solutions ACA-20PC Digital Ammeter 50 A AC, 21.3 mm x 33.9 mm, ±0.15 %

Name: Murata Power Solutions ACA-20PC Digital Ammeter 50 A AC, 21.3 mm x 33.9 mm, ±0.15 %
Brand: Murata Power Solutions
SKU: 3744618
Availability: LimitedAvailability

RS Stock No.: 374-4618Brand: Murata Power SolutionsManufacturers Part No.: ACA-20PC-4-AC1-RL-C

View all in Ammeters

Technical Documents

Specifications

Brand

Murata Power Solutions

Product Type

Digital Ammeter

Current Type

Cutout Height

21.3mm

Cutout Width

33.9mm

Meter Accuracy

±0.15 %

Maximum Operating Temperature

60°C

Minimum Operating Temperature

0°C

Maximum Ampere Value

50 A

Standards/Approvals

UL/cUL/IEC/61010-1

Series

ACA-20PC

Maximum Measurement

50 A

Product Details

Murata Power Solutions Digital Ammeter

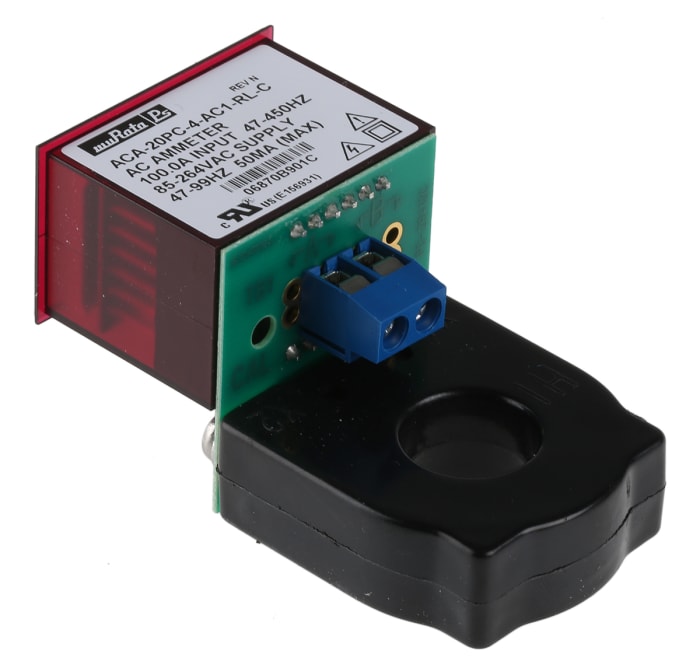

The Murata Power Solutions digital Ammeter is the first digital AC device to incorporate on-board current transformers (CTs). Absolutely no external components, such as expensive low-value shunts or 5A "donut" CTs, are required. This easy to use device has a full-scale current of 100A and a power supply current of 50mA.

Features and Benefits

AC current

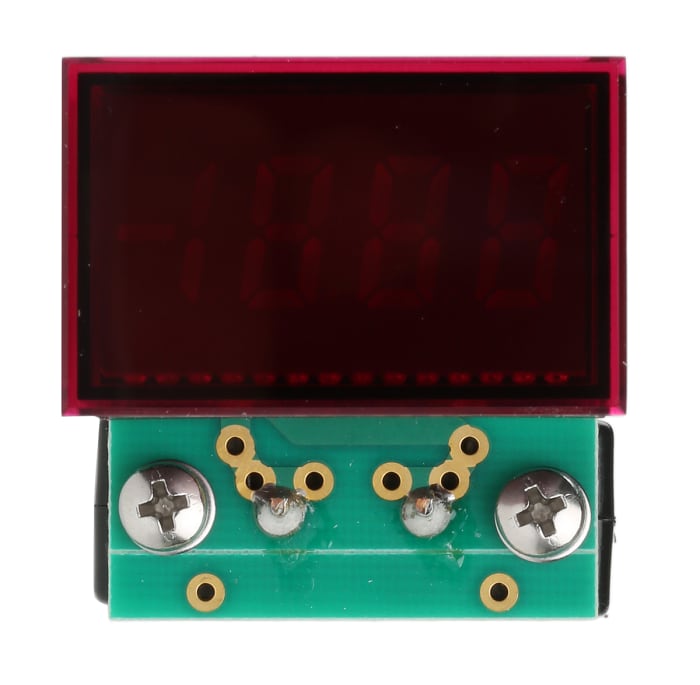

Bright red LED displays
Cut-out height is 21.3mm
Cut-out width is 33.9mm
Number of digits are 4
Operating temperature ranges between 0°C and 60°C
Power supply voltage ranges between 85VAC and 264VAC
Precision A/D converters
Scaling/interface circuitry

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
