LEM HX Series Open Loop Current Sensor, ±75A nominal current

Name: LEM HX Series Open Loop Current Sensor, ±75A nominal current
Brand: LEM
SKU: 4995413

RS Stock No.: 499-5413Brand: LEMManufacturers Part No.: HX 25-P/SP2

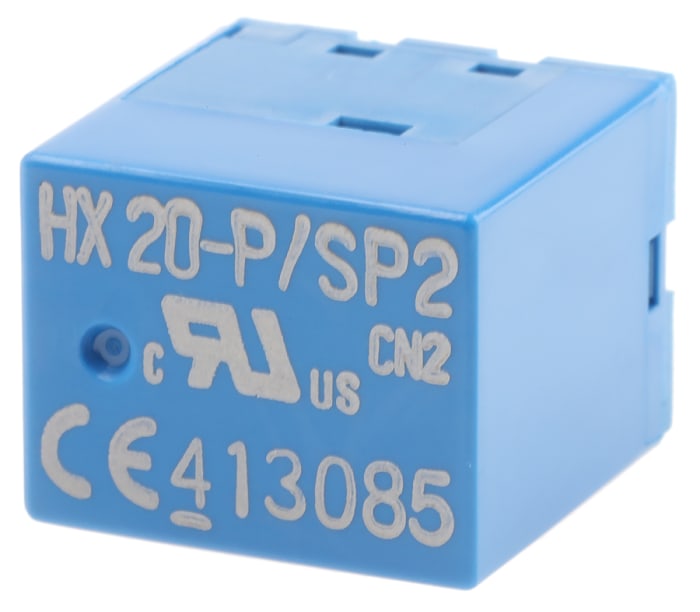

Image representative of range

View all in Current Transformers

Technical Documents

Specifications

Brand

LEM

Bore Size

1.6mm

Sensor Technology

Open Loop

Supply Voltage

12 → 15 V

Series

Mounting Type

PCB Mount

Country of Origin

China

Product Details

HX - P/SP2 Series

Open Loop Hall Effect current transducers with integral primary connections for the accurate measurement of current.

Open Loop (low power consumption)
AC,DC, and mixed signal measurement
Extended measuring range (3xlpn)
Small size
HX 03-20 (23.5x15.8x19mm)
HX 25-50 (20x19x15.4mm)
Multi turn Primary
Unipolar power supply
Operating Temperature Range -25 to +85°C
Supply voltage 12/14Vdc
Load Resistance 2KΩ
Insulation test voltage 3kV
Frequency Bandwidth 50kHz
Body Mat'l UL94-V0
Weight 8g
