Technical Documents
Specifications
Brand
LascarProduct Type
Digital Voltmeter
Current Type
DC
Number of Digits
3.5
Display Type
LCD
Cutout Height
36mm
Cutout Width
72mm
Depth
9mm
Digit Height
15mm
Meter Accuracy
±0.1 %
Series
DPM 2000 RS
Minimum Operating Temperature
0°C
Maximum Operating Temperature
50°C
Standards/Approvals
No
Maximum Measurement
2000 V
Country of Origin
China
Product Details

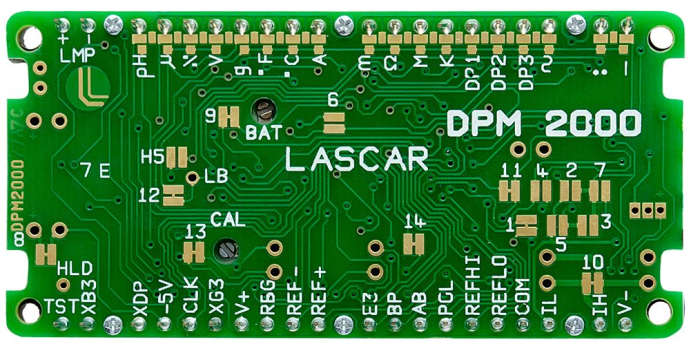

The DPM 2000 from Lascar uses advanced components and construction techniques to provide an unrivalled combination of high performance and elegant appearance at a low cost.
The compact panel meter features a 3½ digit LCD with 15mm digit height and low-profile bezel for mounting. The meter has a 200mV d.c. full scale reading, auto-zero, auto-polarity and programmable decimal points, plugging directly into a single-in-line (SIL) socket or it can be panel mounted using the snap-in bezel and window supplied.
