Technical Documents
Specifications
Brand
JumoProduct Type
PID Temperature Controller
Output Type
Analogue
Number of Inputs
1
Number of Outputs
2
Maximum Current
3A
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-5°C
Control Type
On-Off
Terminal Type
Screw
Maximum Supply Voltage
240V ac/dc
Firing Mode
Firing curve for pottery kilns
Digital Comms
RS485
Diagnostics
Yes
Maximum Voltage
230V
Display Type
7 Segment LED
Length
96mm
Standards/Approvals
DIN EN 60529, DIN EN 61010-1, DIN EN 61326-1, EN 60584, EN 60751, IEC 61554, UL 61010-1, CAN/CSA C22.2 No. 61010-1
IP Rating
IP65
Series
QUANTROL
Mount Type
Panel
Input Type
Thermocouple
Panel Depth
80mm
Country of Origin
Germany
Product Details

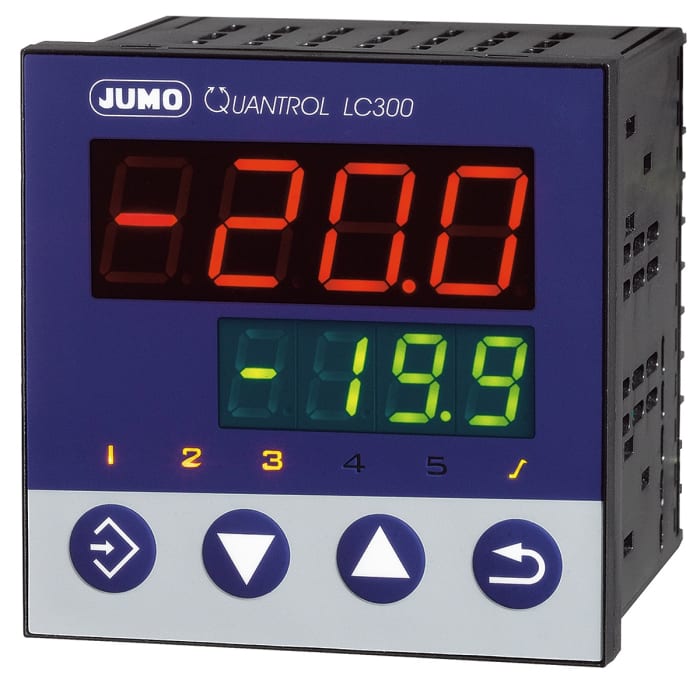

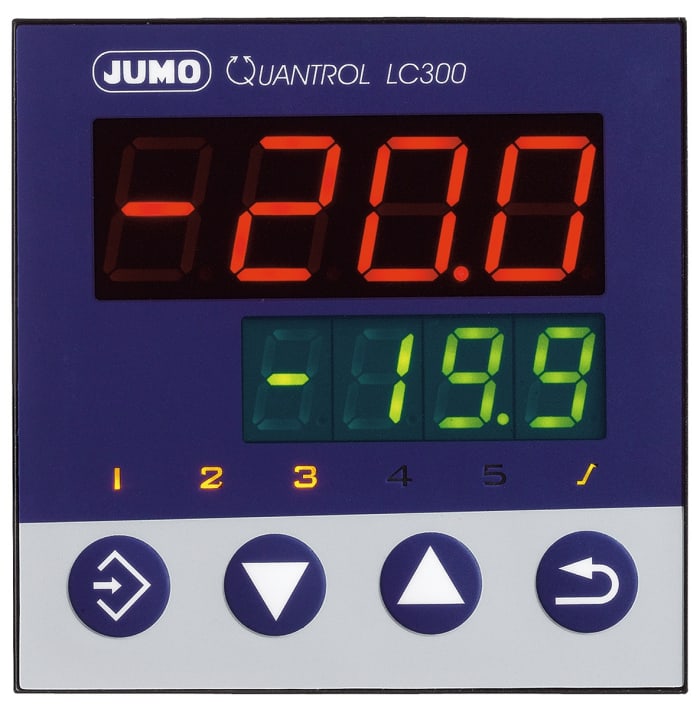

The Jumo Quantrol is a compact, easy to use, and self-optimizing controller series.
The controller is used for two-state and three-state control applications as well as for the control of regulating valves or SCR power controllers via a continuous controller output.
The universal analog input is for RTD temperature probes, thermocouples, or current / voltage signals and can be programmed by the user.
Stock information temporarily unavailable.
€ 354.28
€ 354.28 Each (Exc. VAT)
1
€ 354.28
€ 354.28 Each (Exc. VAT)
Stock information temporarily unavailable.
1
