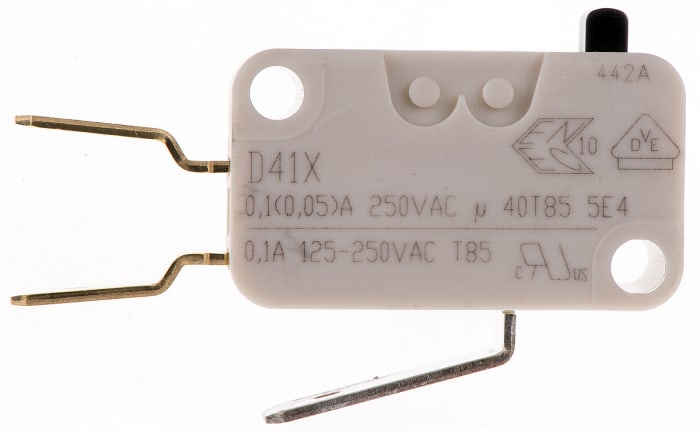

ZF Button Micro Switch, Tab Terminal, 100mA, 250 V ac, SPDT, IP40

Name: ZF Button Micro Switch, Tab Terminal, 100mA, 250 V ac, SPDT, IP40
Brand: ZF
SKU: 7064240

RS Stock No.: 706-4240Brand: ZFManufacturers Part No.: D419-V3AA

View all in Micro Switches

Technical Documents

Specifications

Brand

Product Type

Micro Switch

Actuator Type

Button

Terminal Type

Tab

Switch Contact Current

100mA

Contact Configuration

SPDT

Housing Material

Polyamide, Polyethylene Terephthalate

IP Rating

IP40

Operating Force

0.45N

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Microswitch Type

Miniature

Contact AC Voltage

250V ac

Mechanical Life

10Operations

Hazardous Area Certification

Standards/Approvals

RoHS, IEC 61058-1 / UL 61058-1

Series

D4 Miniature

Country of Origin

Germany

Product Details

D4 Series 0.1A, 16A & 21A

D4 series miniature microswitches are a highly reliable switch that offers a high level of repeat accuracy. The D4 series has high contact stability thanks to application-specific contact materials for switching currents of 100 mA to 21 A at 250 V ac.

Polyester casing
Snap action
V3 case size
EN 61058 and UL1054-approved
Cadmium-free contact material
Mechanical life ≥ 2x10⁷ (3 x 10⁶ for high temperature versions)

Approvals

16A: UL, CSA, VDE, SEV, SEMKO, KEMA, DEMKO, NEMKO, ÖVE, BEAB, SETI
16A Screw Terminal: UL, CSA, VDE
16A High Temperature: UL, CSA, VDE, SEV, SEMKO, KEMA, DEMKO, NEMKO, ÖVE, BEAB, SETI
21A: UL, CSA, VDE, SEV, SEMKO, KEMA, DEMKO, NEMKO, ÖVE, BEAB, SETI
