Technical Documents
Specifications
Brand
TREND NetworksProduct Type
Fibre Tester
Cable Type
Single & Multimode
Equipment Type
Fibre Optic Test Kit
Connector Type
Fixed SC, Fixed ST
Resolution
0.01 dB
Maximum Power Measurement
3dBm
Minimum Power Measurement
-60dBm
Battery Type
AAA
Battery Life
360h
Standards/Approvals
No
Power Source
Battery
Includes
Adapter
Minimum Operating Temperature
-10°C
Model Number
FiberMaster Quad
Maximum Operating Temperature
60°C
Country of Origin
China
Product Details
The FiberMASTER fibre optic test kit quickly measures cabling loss with the automatic calibration feature that stores reference power from any light source for quick dB loss calculations. This equipment allows the user to measure absolute power and calculate the loss of fibre optic links at several wavelengths. The dB calibration feature allows the operator to set a reference level to the light source and directly read the loss of fibre optic links without the need to manually calculate the values.
This kit features 850, 1300, 1310 and 1550 wavelength measurement capabilities and the light source has interchangeable connectors. The unique design of this test kit allows the light source to be docked neatly within the power meter making the kit compact for easy storage while still allowing full operation of both, the source and meter.
33-929 Light source, 850, 1300, 1310, 1550 laser light source with ST, SC and FC adaptors

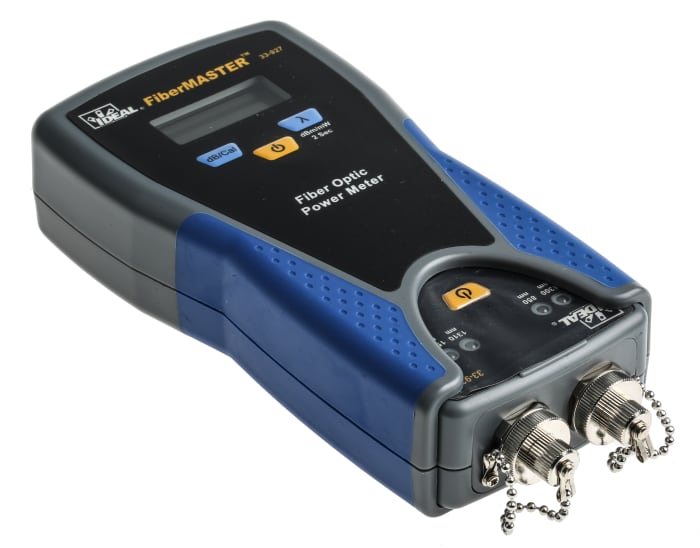

33-927 Power meter, 4 wavelength with universal 2.5mm and fixed FC adaptor
2x SC-SC 50μm multimode cables
1 SC calibration coupler
Carrying case
User Manual in English, Spanish, German, French, Portuguese, Italian and Chinese
Stock information temporarily unavailable.
€ 1,690.46
€ 1,690.46 Each (Exc. VAT)
1
€ 1,690.46
€ 1,690.46 Each (Exc. VAT)
Stock information temporarily unavailable.
1
