Technical Documents
Specifications
Brand
TRACOPOWEROutput Voltage
24V dc
Output Current
3A
Power Rating
70W
Number of Outputs
1
Input Voltage
120 → 375 V dc, 85 → 264 V ac
Mounting Type
Chassis Mount
Package Type
Enclosed
Length
169mm
Width
95mm
Depth
38mm
Efficiency
70 → 84%
Series
TXL 060/070
Minimum Temperature
-10°C
Weight
700g
Maximum Temperature
+70°C
Country of Origin
Taiwan, Province Of China
Product Details

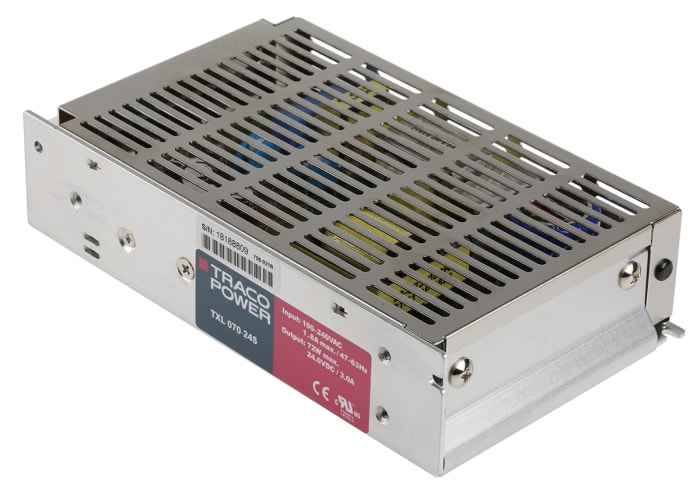

Use this embedded switch mode power supply from Traco Power to build in your setup's energy source. Its universal input range between 85 and 264V AC or 120 and 375V DC means it's ready to team up with most systems. The unit takes the input and steps it down to a steady 24V DC output you can bank on. It can comfortably breathe life into multiple devices at once thanks to a high 72W power rating. Short-circuit and overvoltage protection stop surges and faults to safeguard downstream components from damage.
This product's mean time between failures is 300,000 hours, giving you non-stop performance in the long term.
