Technical Documents
Specifications
Brand
TRACOPOWERProduct Type
Switching Power Supply
Maximum Output Voltage
15V dc
Number of Outputs
2
Mount Type
Chassis
Power
15W
Minimum Operating Temperature
-25°C
SMPS Output Current
500mA
Maximum Operating Temperature
70°C
Depth
23.3mm
Length
96mm
Weight
132g
Standards/Approvals
EN 61000-4-11, EN 55032, EN 55011, FCC Part 15: Class B, UL/cUL 508, UL 60950-1, RoHS, IEC/EN 60950-1, EN 61204-3: 2000, EN 61000-6-3: 2007, EN 61000-6-2: 2005, EN 61000-4-6, EN 61000-4-5, EN 61000-4-4, EN 61000-4-3, EN 61000-4-2
Width
54mm
Efficiency
79%
Series
TMP
Maximum Input Voltage
264V ac
Output Current
500mA
Hazardous Area Certification
No
Minimum Input Voltage
85V ac
Country of Origin
Taiwan, Province Of China
Product Details

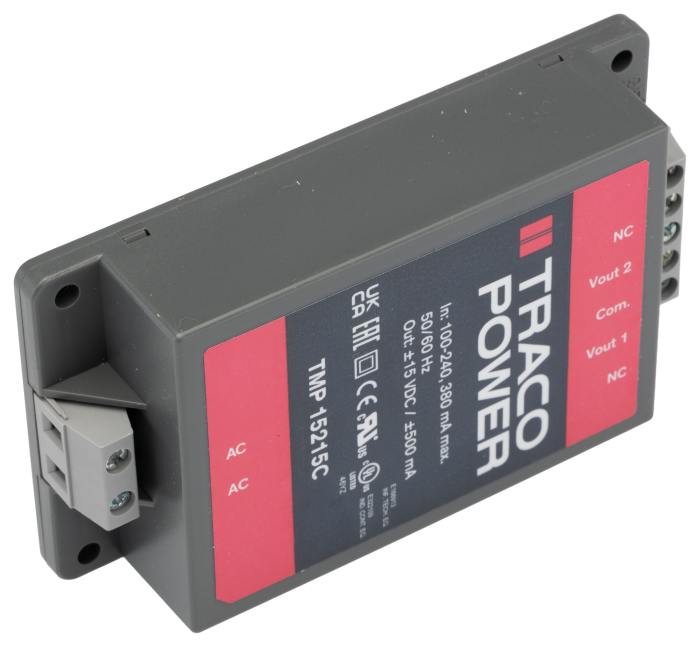

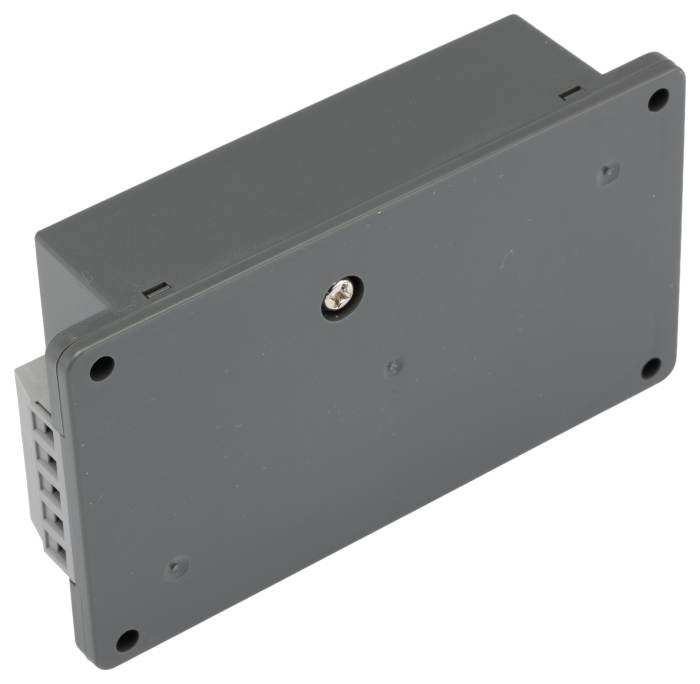

Level out the energy in your setup with this switching power supply from Traco Power. It accepts input voltages from 85 to 264V AC and converts them into a steady output of ±15V DC. A start-up time of only 400ms means it's a fast-acting component that gets you up and running in a jiffy. As it has two outputs, you can conveniently use it to power two circuits simultaneously. Inbuilt overload and short-circuit protection prevents damage from hazardous electrical faults. This unit's made with reinforced insulation to keep a safe distance between you and the flow of current. Chassis mounting makes installation a breeze.
Yes. It operates in relative humidity up to 95%, so it's ideal for use in damp environments.
The assembly's housing is self-extinguishing within 10 seconds to boost safety in the event of a fire.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
€ 46.14
€ 46.14 Each (Exc. VAT)
1
€ 46.14
€ 46.14 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 46.14 |
| 5 - 9 | € 44.77 |
| 10 - 24 | € 43.37 |
| 25 - 49 | € 41.52 |
| 50+ | € 39.68 |
