Technical Documents
Specifications
Brand
TRACOPOWERProduct Type
Switching Power Supply
Maximum Output Voltage
15V dc
Number of Outputs
2
Mount Type
PCB
Power
15W
Minimum Operating Temperature
-25°C
SMPS Output Current
500mA
Maximum Operating Temperature
60°C
Depth
19.3mm
Length
74mm
Weight
114g
Width
54mm
Standards/Approvals
EN 55011, EN 55032, UL/cUL 508, UL 60950-1, RoHS, IEC/EN 60950-1, FCC Part 15: Class B, EN 61204-3: 2000, EN 61000-6-3: 2007, EN 61000-6-2: 2005, EN 61000-4-6, EN 61000-4-5, EN 61000-4-4, EN 61000-4-3, EN 61000-4-11, EN 61000-4-2
Efficiency
79%
Series
TMP
Maximum Input Voltage
264V ac
Output Current
500mA
Hazardous Area Certification
No
Minimum Input Voltage
85V ac
Country of Origin
Taiwan, Province Of China
Product Details

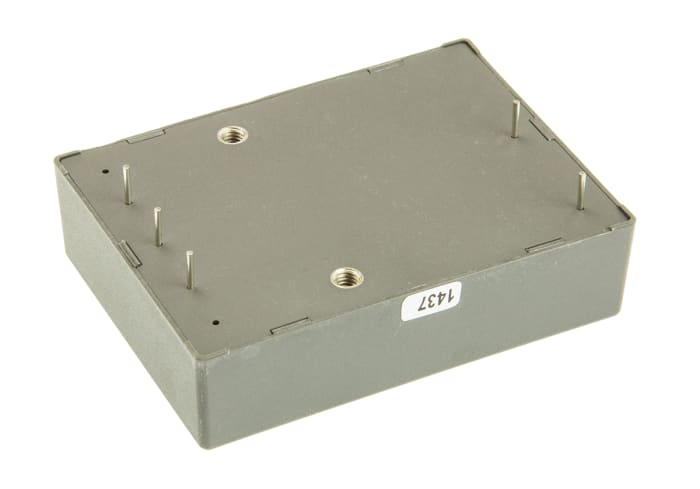

In search of a switching power supply that goes the extra mile? Go for this one from Traco Power. It accommodates a broad input range of 85 to 264V AC and 120 to 370V DC, and safely steps them down to a 15V DC output. Thanks to the product's built-in overload, over-temperature and short-circuit protection, it grinds power faults to a halt before they become hazardous. A fully encapsulated design protects the inner parts from dust and moisture, so this is a tough option for challenging work environments.
Yes, it works reliably in a wide temperature range from -25°C to +60°C, so you can depend on it in harsh conditions.
It has an efficiency rating of 79%, so it effectively manages power consumption to reduce energy waste.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
€ 41.99
€ 41.99 Each (Exc. VAT)
1
€ 41.99
€ 41.99 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 41.99 |
| 5 - 9 | € 40.73 |
| 10 - 24 | € 39.46 |
| 25 - 49 | € 37.79 |
| 50+ | € 36.11 |
