Technical Documents
Specifications
Brand
TRACOPOWERProduct Type
Switching Power Supply
Maximum Output Voltage
24V dc
Number of Outputs
1
Mount Type
PCB
Power
15W
Minimum Operating Temperature
-25°C
SMPS Output Current
625mA
Maximum Operating Temperature
70°C
Depth
19.5mm
Length
74mm
Weight
135g
Standards/Approvals
EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-2: 2005, EN 61000-6-3: 2007, EN 61204-3: 2000, FCC Part 15: Class B, IEC/EN 60950-1, RoHS, UL 60950-1, UL/cUL 508, EN 55011, EN 55032, EN 61000-4-11, EN 61000-4-2
Width
54mm
Efficiency
79%
Series
TMP
Maximum Input Voltage
264V ac
Output Current
625mA
Hazardous Area Certification
No
Minimum Input Voltage
85V ac
Country of Origin
Taiwan, Province Of China
Product Details

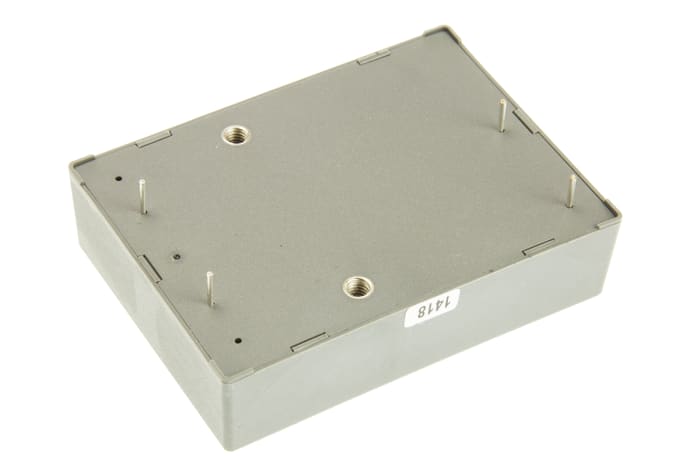

This power module from the TMP series features a nominal output voltage of 24V DC and a maximum output current of 625mA. It operates with an input voltage range of 85 to 264V AC, supporting universal input. Designed for dependable operation, it boasts high efficiency, ensuring minimal energy loss during usage.
Yes, it includes both overload and short circuit protection features.
Yes, it is designed for easy PCB mount integration.
Yes, it adheres to IEC/EN/UL safety standards.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
€ 38.73
€ 38.73 Each (Exc. VAT)
1
€ 38.73
€ 38.73 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 38.73 |
| 5 - 9 | € 37.58 |
| 10 - 24 | € 36.42 |
| 25 - 49 | € 34.86 |
| 50+ | € 33.31 |
