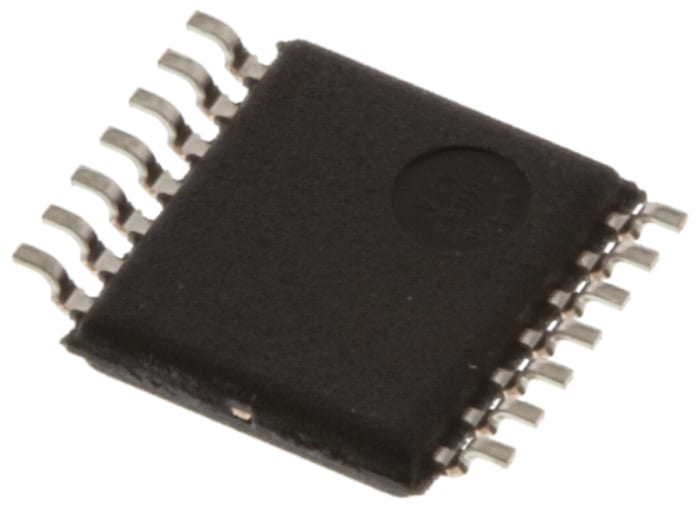

Texas Instruments TXB0104PWR, Voltage Level Shifter Voltage Level Translator 2 Voltage Level, 14-Pin TSSOP
Technical Document
Specifications
Brand
Texas InstrumentsLogic Family
Translator
Product Type
Voltage Level Shifter
Direction Type
Bi-Directional
Maximum Propagation Delay Time @ CL
4ns
Mount Type
Surface
Package Type
TSSOP
Number of Elements per Chip
2
Pin Count
14
Output Type
3 State
Logic Function
Voltage Level Translator
Maximum Low Level Output Current
0.02mA
Minimum Supply Voltage
1.2V
Maximum High Level Output Current
-0.02mA
Maximum Supply Voltage
5.5V
Translation
Voltage Level
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
85°C
Width
4.4 mm
Height
1.15mm
Length
5mm
Standards/Approvals
No
Series
TXB0104
Automotive Standard
No
Product details
Voltage-Level Translators, Texas Instruments
Voltage Level Translators, Texas Instruments
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 8.30
€ 1.66 Each (In a Pack of 5) (Exc. VAT)
Standard
5
€ 8.30
€ 1.66 Each (In a Pack of 5) (Exc. VAT)
Stock information temporarily unavailable.
Standard
5
| Quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 20 | € 1.66 | € 8.30 |
| 25 - 45 | € 1.583 | € 7.91 |
| 50 - 120 | € 1.416 | € 7.08 |
| 125 - 245 | € 1.28 | € 6.40 |
| 250+ | € 1.216 | € 6.08 |
