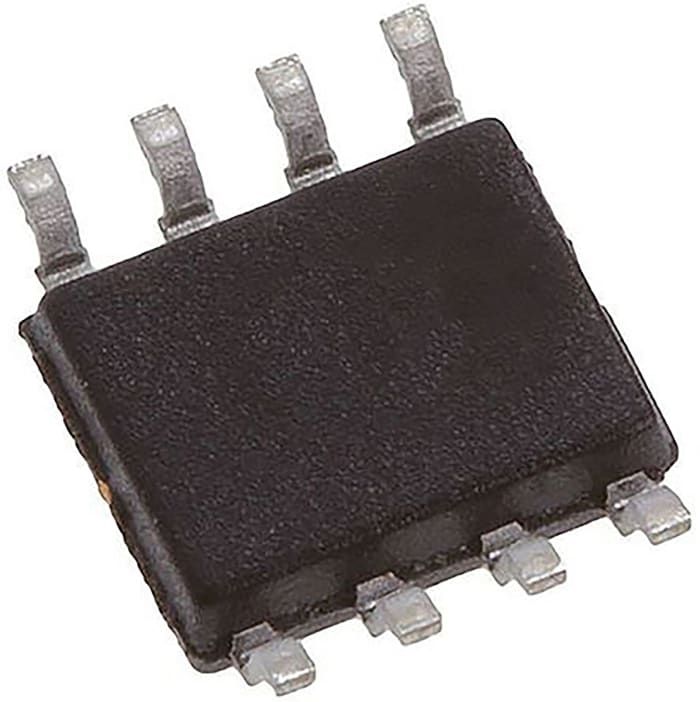

TLC277CD Texas Instruments, Precision, Op Amp, 1.7MHz, 5 → 15 V, 8-Pin SOIC

RS Stock No.: 517-0930PBrand: Texas InstrumentsManufacturers Part No.: TLC277CD
brand-logo
View all in Op Amps

Technical Document

Specifications

Brand

Texas Instruments

Amplifier Type

Precision

Mounting Type

Surface Mount

Package Type

SOIC

Power Supply Type

Single

Number of Channels per Chip

2

Pin Count

8

Typical Single Supply Voltage

5 → 15 V

Typical Gain Bandwidth Product

1.7MHz

Typical Slew Rate

3.6V/µs

Maximum Operating Temperature

+70 °C

Minimum Operating Temperature

0 °C

Rail to Rail

No

Typical Voltage Gain

87.2 dB

Length

4.9mm

Width

3.91mm

Typical Input Voltage Noise Density

25nV/√Hz

Height

1.58mm

Dimensions

4.9 x 3.91 x 1.58mm

Product details

Precision LinCMOS Operational Amplifiers
