Technical Documents
Specifications
Brand
Texas InstrumentsProduct Type
CMOS Inverter
Logic Function
Inverter
Input Type
Schmitt Trigger
Number of Elements per Chip
2
Schmitt Trigger Input
Yes
Maximum Propagation Delay Time @ CL
10.5ns
Maximum High Level Output Current
-32mA
Maximum Low Level Output Current
32mA
Minimum Supply Voltage
1.65V
Mount Type
Surface
Package Type

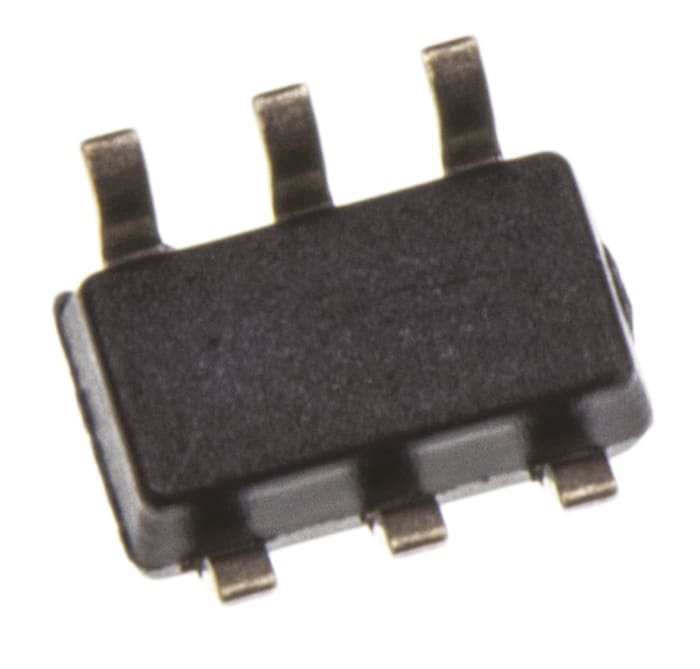

SOT-23
Maximum Supply Voltage
5.5V
Pin Count
6
Minimum Operating Temperature
-40°C
Logic Family
LVC
Maximum Operating Temperature
85°C
Height
1.15mm
Length
2.9mm
Standards/Approvals
No
Series
SN74LVC2G14
Automotive Standard
No
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
€ 19.08
€ 0.382 Each (Supplied on a Reel) (Exc. VAT)
Production pack (Reel)
50
€ 19.08
€ 0.382 Each (Supplied on a Reel) (Exc. VAT)
Stock information temporarily unavailable.
Production pack (Reel)
50
| Quantity | Unit price | Per Reel |
|---|---|---|
| 50 - 90 | € 0.382 | € 3.82 |
| 100 - 240 | € 0.342 | € 3.42 |
| 250 - 490 | € 0.309 | € 3.09 |
| 500+ | € 0.294 | € 2.94 |
