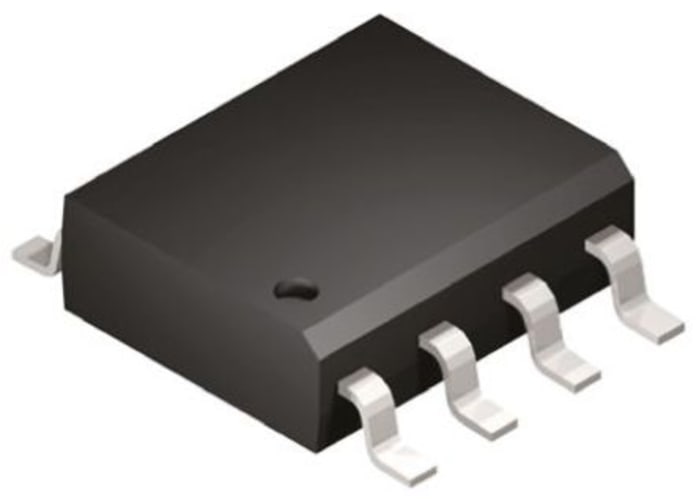

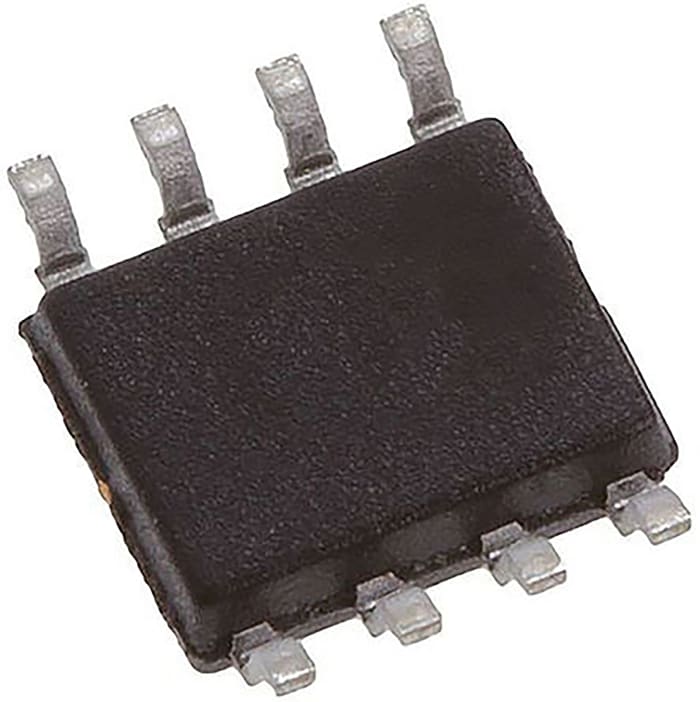

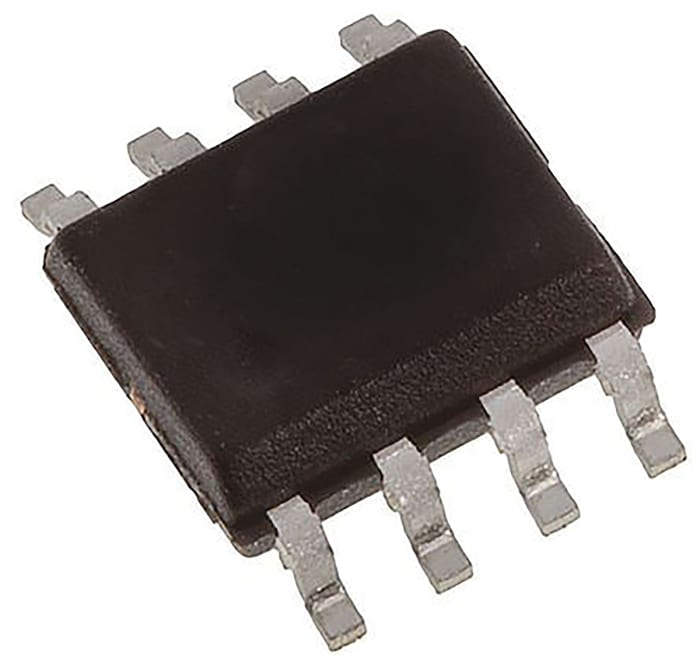

Texas Instruments Buck Converter, Surface Mount, 28V Output Voltage, 2 A Output Current, 1 Outputs

Name: Texas Instruments Buck Converter, Surface Mount, 28V Output Voltage, 2 A Output Current, 1 Outputs
Brand: Texas Instruments
SKU: 9083871P

RS Stock No.: 908-3871PBrand: Texas InstrumentsManufacturers Part No.: LMR14020SDDA

View all in Home

Technical Document

Specifications

Brand

Texas Instruments

Product Type

Buck Converter

Output Voltage 1

28V

Output Current

Mount Type

Surface Mount

Number of Outputs

Efficiency

92%

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Output Voltage 2

24V

Number of Pins

Series

LMR14020

Package Type

SOIC

Line Regulation

0.02 %/V

Depth

1.3mm

Length

5mm

Standards/Approvals

ESDA, JEDEC, ANSI, RoHS, REACH

Width

4mm

Maximum Input Voltage

40V

Minimum Input Voltage

Product details

LMR Nano SIMPLE SWITCHER® Step-Down Regulator Series

Input Voltage up to 42V (LMRx42xx), 20V (LMRx20xx), and 5.5V (LMRx05xx)
Output Current up to 2A (LMRxxx20), 1.5A (LMRxxx15), 1A (LMRxxx10), etc.
Adjustable output voltage from 0.6V
1MHz or greater switching frequency of 1.6MHz (LMR.....X) and 3MHz (LMR.....Y)
Low Shutdown Quiescent Current
Internal Soft-start
Thermal Shutdown

SIMPLE SWITCHER® Regulators, Texas Instruments

Use for wide voltage inputs designs up to 75V, and a balance between ease of use and flexibility.
