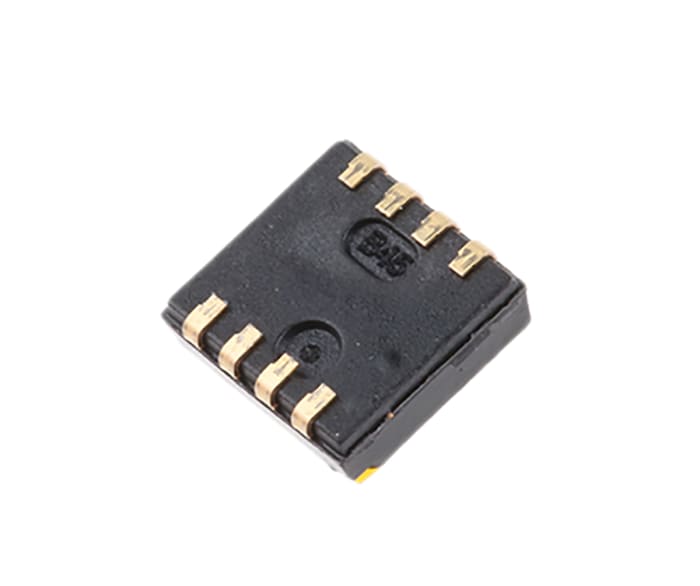

TE Connectivity 4 Way Surface Mount DIP Switch SPST

Name: TE Connectivity 4 Way Surface Mount DIP Switch SPST
Brand: TE Connectivity
SKU: 7917609P

RS Stock No.: 791-7609PBrand: TE ConnectivityManufacturers Part No.: GDH04SATR04

View all in DIP & SIP Switches

Technical Documents

Specifications

Brand

TE Connectivity

Number of Positions

Mounting Type

Surface Mount

Contact Configuration

SPST

Contact Material

Copper Alloy

Package Style

DIP

Actuator Type

Slide

Contact Current Rating

100 mA @ 24 V dc

Mechanical Life

1000Cycles

Maximum Operating Temperature

+85°C

Minimum Operating Temperature

-30°C

Operating Temperature Range

-30 → +85°C

Country of Origin

China

Product Details

GDA-SA Series DIP Switch

GDA-SA Series DIP switches from TE Connectivity. Manufactured to meet the industry demand for miniaturisation allowing for embedded electronics. Typical applications include vending machines, cash machines, access control systems and instumentation equipment.

1.27mm pitch
J-bend terminals
Gold plated contacts
Flush actuators

Dual-In-Line Switches
