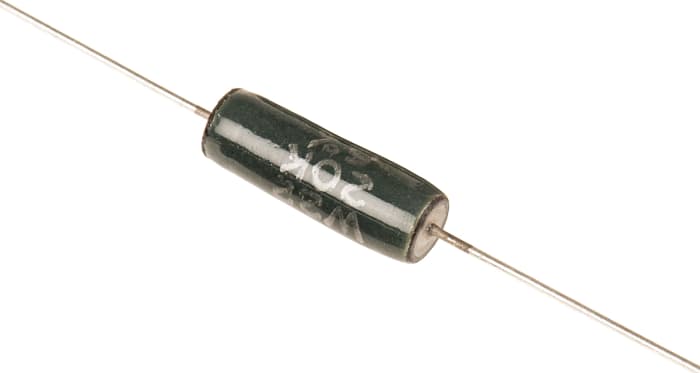

TE Connectivity 20kΩ Wire Wound Wirewound Through Hole Fixed Resistor 7W ±5% ER5820KJT
Technical Document
Specifications
Brand
TE ConnectivityResistance
20kΩ
Power Rating
7W
Tolerance
±5%
Technology
Wire Wound
Series
ER58
Temperature Coefficient
0 → +60ppm/°C
Maximum Operating Temperature
+200°C
Minimum Operating Temperature
-55°C
Country of Origin
India
Product details
ER58 Series, Axial
ER Series are high power dissipation Silicone coated resistors
Special pulse styles available
Resistant to most solvents
Silicone Coated Axial
Wire-wound power resistors manufactured to a very high standard and employing a ruggedised welded cap and lead method of construction giving considerable strength and resistance to damage. The element is wound onto a ceramic former and coated with a non-inflammable silicone cement.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 9.91
€ 1.982 Each (In a Pack of 5) (Exc. VAT)
Standard
5
€ 9.91
€ 1.982 Each (In a Pack of 5) (Exc. VAT)
Stock information temporarily unavailable.
Standard
5
| Quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 95 | € 1.982 | € 9.91 |
| 100 - 245 | € 1.309 | € 6.54 |
| 250 - 495 | € 1.091 | € 5.45 |
| 500 - 1245 | € 0.992 | € 4.96 |
| 1250+ | € 0.891 | € 4.46 |
