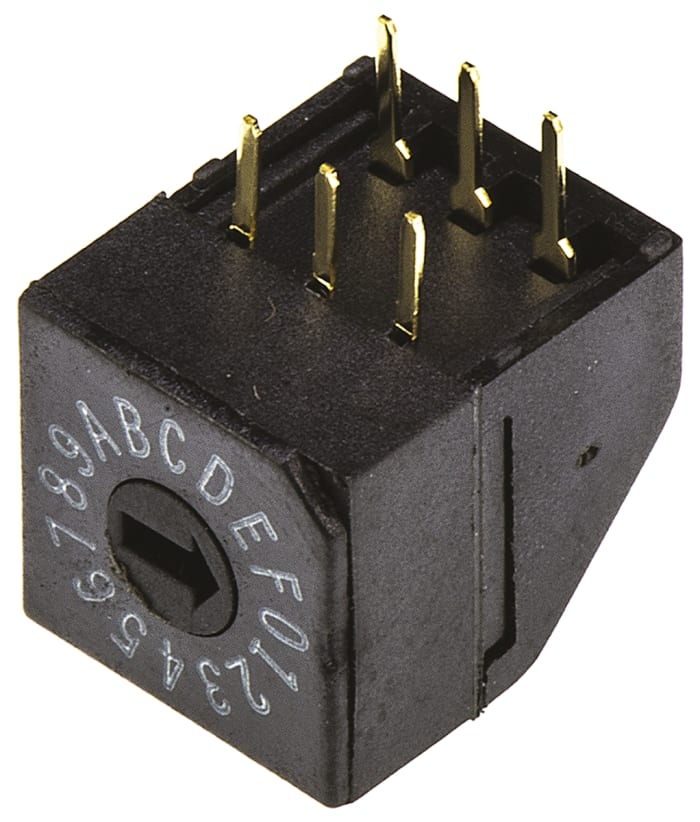

TE Connectivity Rotary Flush Rotary Coded DIP Switch

Name: TE Connectivity Rotary Flush Rotary Coded DIP Switch
Brand: TE Connectivity
SKU: 6394806
Availability: LimitedAvailability

RS Stock No.: 639-4806Brand: TE ConnectivityManufacturers Part No.: DRD16RAE04

View all in Rotary Encoded DIP Switches

Technical Documents

Specifications

Brand

TE Connectivity

Product Type

Rotary Coded DIP Switch

Actuator Type

Rotary Flush

Product Details

Miniature Rotary Encoded Switches

Contact rating: 0.4VA @ 20Vdc max
Contact resistance: 50mΩ max
Life expectancy: 10000 rotations
Temperature range: -30 to +85°C
5-second resistance to wave soldering at 285°C (mounted on 1.5mm card)
Resistant to ultrasound cleaning in a solvent solution, 10% contaminated by fluxing agent
Gold plated contacts
