Technical Documents
Specifications
Brand
TE ConnectivityProduct Type
Solder Sleeve
Sub Type
Terminator
Sleeve Length
19.05mm
Material
Polyvinyl Fluoride
Dielectric Strength
2kV
Minimum Cable Diameter
3.18mm
Maximum Cable Diameter
6.48mm
Colour
Natural
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
125°C
Standards/Approvals
ANSI J-STD-004, ANSI J-STD-006
Shrink Temperature
105°C
Series
D-142
Country of Origin
Mexico
Product Details

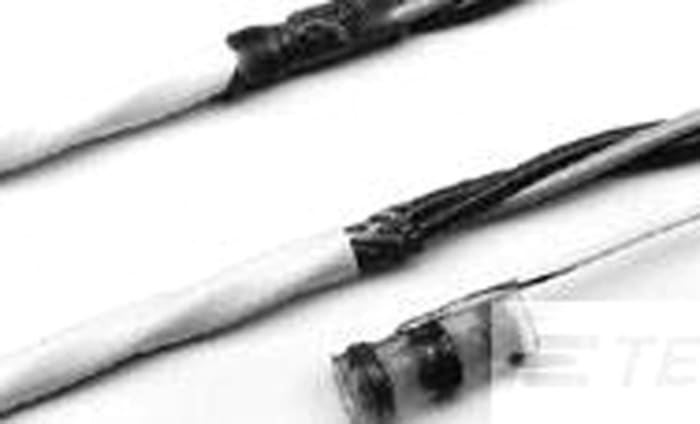

D-142 compact terminals allow earth tags to be created on screened cables and are compatible with many dielectric and insulating materials, even those that are heat-sensitive.
The solder connections are insulated, protected and highly resistant to mechanical stress.
NAS-1745 (aeronautics) and MIL-STD-105 (military) approved, except D-142-65.
Stock information temporarily unavailable.
€ 290.27
€ 290.27 1 Box of 100 (Exc. VAT)
1
€ 290.27
€ 290.27 1 Box of 100 (Exc. VAT)
Stock information temporarily unavailable.
1
