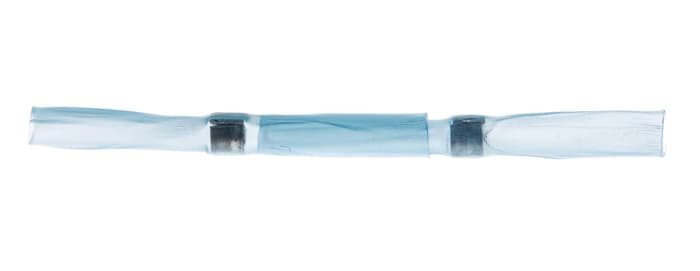

TE Connectivity Blue Polyolefin Solder Sleeve 18.54mm Length 1.52 mm Cable Diameter 0.76 mm Cable Diameter
Technical Document
Specifications
Brand
TE ConnectivityProduct Type
Solder Sleeve
Sub Type
Terminator
Sleeve Length
18.54mm
Material
Polyolefin
Dielectric Strength
2kV
Voltage
600 V
Minimum Cable Diameter
0.76mm
Maximum Cable Diameter
1.52mm
Colour
Blue
Minimum Operating Temperature
-5°C
Maximum Operating Temperature
125°C
Standards/Approvals
ANSI J-STD-004, ANSI J-STD-006
Shrink Temperature
85°C
Series
D-110
Country of Origin
Mexico
Product details
Solder Sleeves®
A one piece soldering system for jointing signal cables and terminating cable screens. The system consists of heat shrinkable sleeve containing a predetermined amount of fluxed solder and a thermoplastic sealing insert at each end. The solder sleeve is placed over the joint to be made and the sleeve is heated by a heat gun. The sleeve shrinks, the sealing inserts melt and flow and the solder starts to melt. Heating is continued until the solder is seen to fully melt and flow. Temperature range -55°C to +125°C.
Stock information temporarily unavailable.
€ 1,036.38
€ 2.073 Each (In a Pack of 500) (Exc. VAT)
500
€ 1,036.38
€ 2.073 Each (In a Pack of 500) (Exc. VAT)
Stock information temporarily unavailable.
500
| Quantity | Unit price | Per Pack |
|---|---|---|
| 500 - 7000 | € 2.073 | € 1,036.38 |
| 7500 - 24500 | € 1.969 | € 984.45 |
| 25000+ | € 1.865 | € 932.51 |
