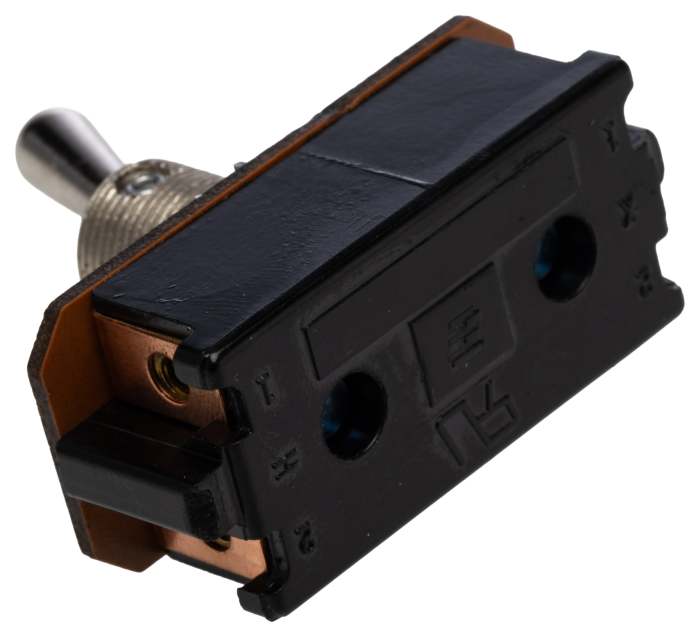

TE Connectivity Toggle Switch, Panel Mount, On-Off-On, DPST, Screw Terminal, 250 V ac

Name: TE Connectivity Toggle Switch, Panel Mount, On-Off-On, DPST, Screw Terminal, 250 V ac
Brand: TE Connectivity
SKU: 7831189
Availability: LimitedAvailability

RS Stock No.: 783-1189Brand: TE ConnectivityManufacturers Part No.: 7320K3

View all in Toggle Switches

Technical Documents

Specifications

Brand

TE Connectivity

Product Type

Toggle Switch

Contact Configuration

DPST

Switch Operation

On-Off-On

Switch Contact Current

Mount Type

Panel

Terminal Type

Screw

Panel Cutout Size

12.7 mm

Actuator Length

14.04mm

Contact AC Voltage

250V ac

Height

46.16mm

Standards/Approvals

RoHS

Product Details

TE Connectivity Power Toggle Switch

Power Toggle Switches from TE Connectivity that are primarily designed for heavy duty applications, such as power tool control. The contacts are quick make / quick break with a wiping action.

Quick make / quick break contacts
Silver plated contacts
