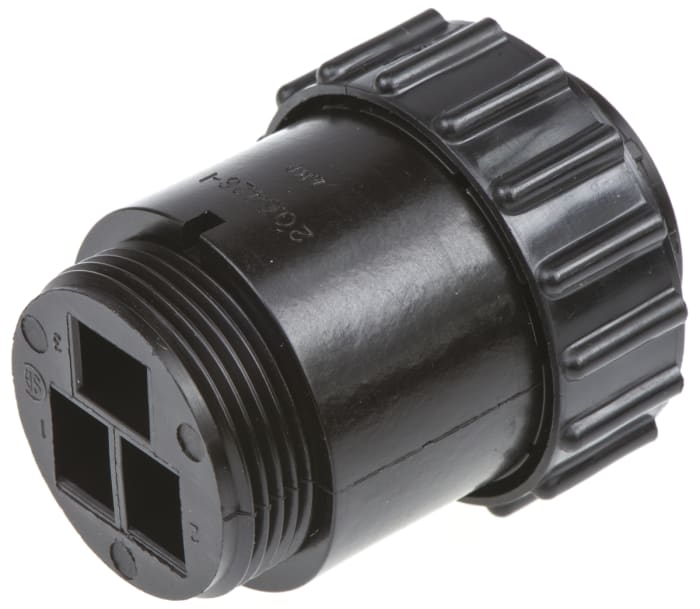

TE Connectivity Circular Connector, 3 Contacts, Cable, Standard Connector, Plug, Male, CPC Series
Technical Document
Specifications
Brand
TE ConnectivityNumber of Contacts
3
Product Type
Circular Connector
Mount Type
Cable
Connector Size
Standard
Current
34A
Plug/Socket
Plug
Contact Gender
Male
Series
CPC
Orientation
Straight
Voltage
600 V
Mating Type
Keyed
Shell Size
17
Minimum Operating Temperature
-55°C
Termination Type
Crimp
Maximum Operating Temperature
105°C
Housing Material
Glass Filled Nylon
Standards/Approvals
No
Distrelec Product Id
30038595
Contact Material
Copper
Product details
Cable Mount Receptacle Shell Series 3
From TE Connectivity, these Series 3 cable mount Circular Plastic Connector receptacles are moulded from thermoplastic and feature a threaded contact for a secure connection to corresponding Series 3 CPC connectors. Available in 3 and 7 pole arrangements in both male and female variants.
TE Connectivity CPC Plastic Series 1, 2 and 3
