Technical Documents
Specifications
Brand
TE ConnectivityProduct Type
PCB Header
Series
Dynamic 5000
Pitch
10.16mm
Current
30A
Number of Contacts
4
Housing Material
Glass Filled Polyester
Number of Rows
1
Orientation
Right Angle
Shrouded/Unshrouded
Shrouded
Connector System
Wire-to-Board
Mount Type
Through Hole
Contact Material
Copper Alloy
Contact Plating
Gold
Minimum Operating Temperature
-55°C
Row Pitch
10.16mm
Termination Type
Solder
Contact Gender
Male
Maximum Operating Temperature
105°C
Standards/Approvals
No
Voltage
630V
Product Details

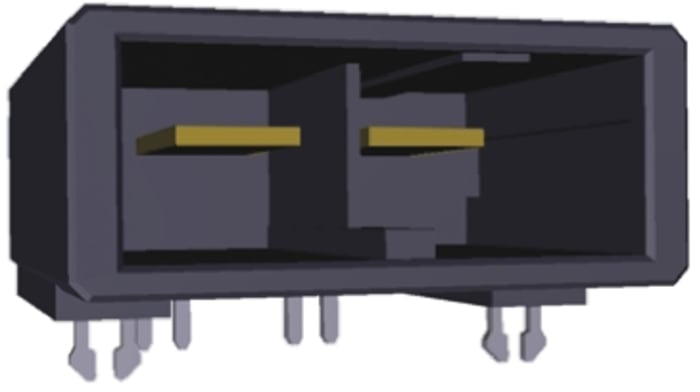

The TE Connectivity Dynamic Range D-4200 Series Headers have a Tin plated Retention Leg for increased stability. The PCB solder tails of the D-4200 Series Headers are Tin plated and the contact Tabs are Gold plated. The recommended PCB thickness for these D-4200 Series Headers is 1.6 to 2.4 mm.
For mating D-5200 Series Housings see stock number 680-1001 typical.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
€ 14.70
€ 14.70 Each (Exc. VAT)
Standard
1
€ 14.70
€ 14.70 Each (Exc. VAT)
Stock information temporarily unavailable.
Standard
1
| Quantity | Unit price |
|---|---|
| 1 - 9 | € 14.70 |
| 10 - 24 | € 13.37 |
| 25 - 49 | € 12.71 |
| 50 - 99 | € 12.00 |
| 100+ | € 11.16 |
