Technical Documents
Specifications
Brand
TDK-LambdaSeries
DSP
Product Type
DIN Rail Power Supply
Maximum Output Voltage
24V dc
Sub Type
Switched Mode
Electrical Phase
1
Input Voltage Type
AC/DC
Number of Outputs
1
Power
60W
Output Current
2.5A
Minimum Operating Temperature
-25°C
Output Voltage Type
DC
Maximum Operating Temperature
71°C
Hazardous Area Certification
No
Standards/Approvals
EN 61000-4-3, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-5, EN 61000-4-4, EN 61000-4-2, UL 94 V-0, UL 60950-1, UL 508, UL 1310 Class 2, IEC 60068-2-6, IEC 60068-2-27, EN 61000-4-8, CE, EN 61000-4-6, EN 55022
Width
71mm
Height
91mm
Depth
55.6mm
Maximum Input Voltage
370, 264V dc
Minimum Input Voltage
90V ac
Efficiency
86%
Country of Origin
Taiwan, Province Of China
Product Details

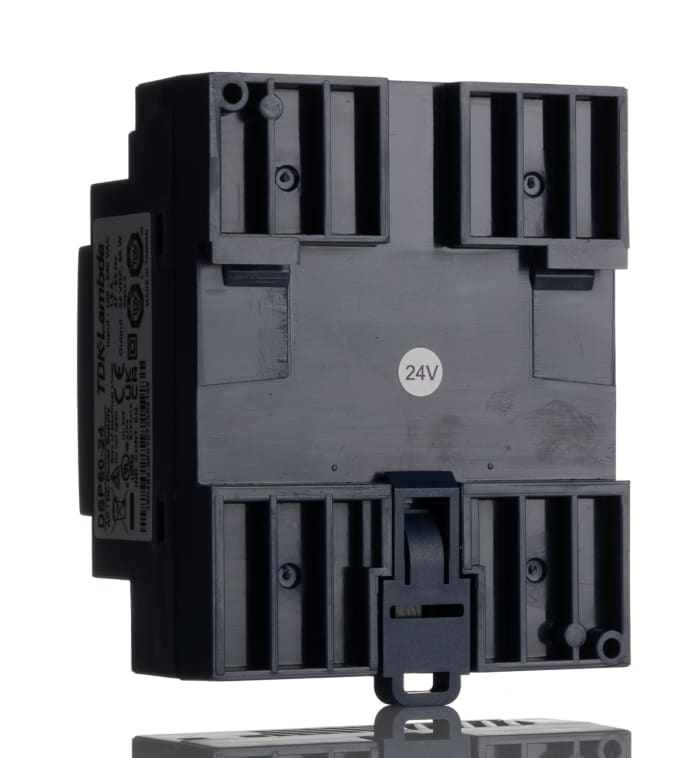

The TDK-Lambda DSP series single output switch-mode DIN rail power supply has an output current rating of 2.5A at 24VDC. It has a universal single phase input voltage ranging between 90VAC and 264VAC/120VDC and 370VDC with adjustable output voltage. This unit is designed for easy installation into shallow cabinets with a very shallow installation depth of only 56 mm. This makes the unit ideal for installation in current distribution boards. Adjustable output voltage ranging between 24VDC and 28VDC.
Stock information temporarily unavailable.
€ 61.13
€ 61.13 Each (Exc. VAT)
1
€ 61.13
€ 61.13 Each (Exc. VAT)
Stock information temporarily unavailable.
1
