Technical Documents
Specifications
Brand
TDK-LambdaProduct Type
DIN Rail Power Supply
Series
DSP
Sub Type
Switched Mode
Maximum Output Voltage
12V dc
Electrical Phase
1
Input Voltage Type
AC/DC
Number of Outputs
1
Power
10W
Output Current
830mA
Minimum Operating Temperature
-25°C
Output Voltage Type
DC
Maximum Operating Temperature
71°C
Height
91mm
Depth
55.6mm
Hazardous Area Certification
No
Standards/Approvals
UL 508, UL 60950-1, EN 60950-1, CE, UL 1310 Class 2(2)
Width
55.6mm
Maximum Input Voltage
264V ac
Efficiency
78%
Minimum Input Voltage
90V ac
Country of Origin
Taiwan, Province Of China
Product Details

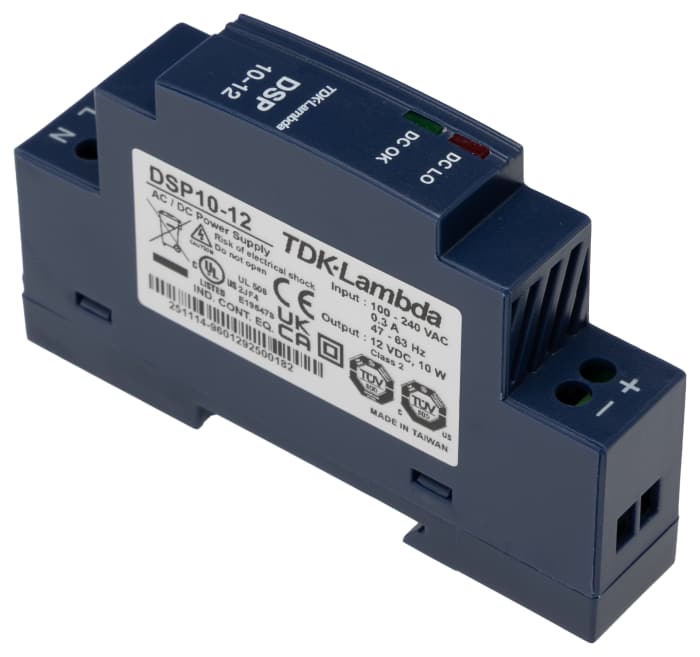

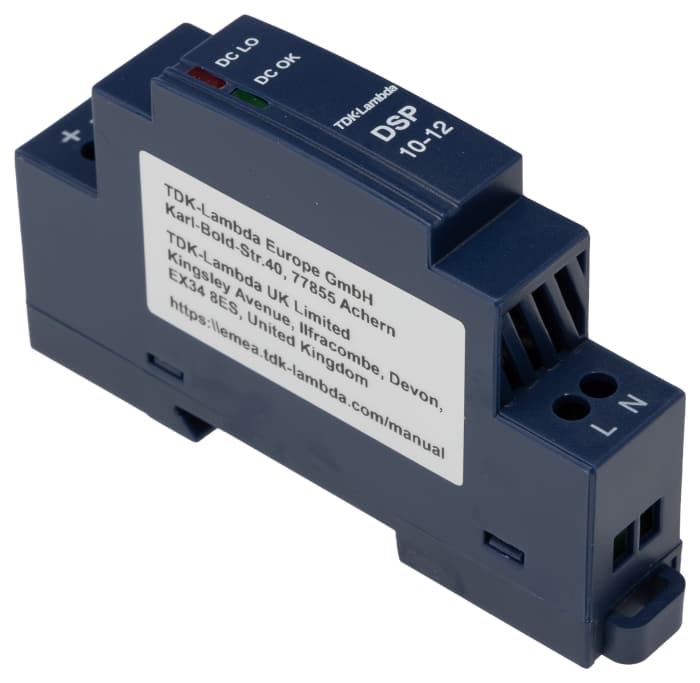

The TDK-Lambda DSP series single output switch-mode DIN rail power supply has an output current rating of 830mA at 12VDC. It has universal single phase input voltage ranging between 90VAC and 264VAC/120VDC and 370VDC. This unit is designed for easy installation into shallow cabinets with a very shallow installation depth of only 56 mm. This makes the unit ideal for installation in current distribution boards.
Stock information temporarily unavailable.
€ 31.56
€ 31.56 Each (Exc. VAT)
1
€ 31.56
€ 31.56 Each (Exc. VAT)
Stock information temporarily unavailable.
1
