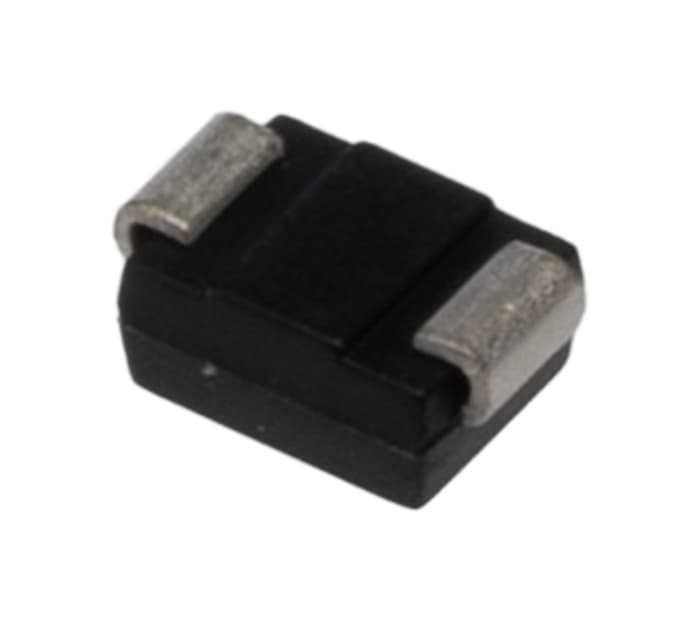

STMicroelectronics 200 V 2 A Diode Switching 2-Pin DO-214AA STTH2R02U
Technical Document
Specifications
Brand
STMicroelectronicsProduct Type
Diode
Mount Type
Surface
Package Type
DO-214AA
Maximum Continuous Forward Current If
2A
Peak Reverse Repetitive Voltage Vrrm
200V
Diode Configuration
Single
Series
STTH2R02
Rectifier Type
Switching
Pin Count
2
Peak Reverse Current Ir
3μA
Maximum Forward Voltage Vf
1.2V
Minimum Operating Temperature
-65°C
Peak Non-Repetitive Forward Surge Current Ifsm
75A
Peak Reverse Recovery Time trr
30ns
Maximum Operating Temperature
175°C
Width
3.95 mm
Length
4.6mm
Height
2.45mm
Standards/Approvals
No
Automotive Standard
No
Product details
Rectifier Diodes, 1A to 3A, STMicroelectronics
Diodes and Rectifiers, STMicroelectronics
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 3.64
€ 0.182 Each (In a Pack of 20) (Exc. VAT)
20
€ 3.64
€ 0.182 Each (In a Pack of 20) (Exc. VAT)
Stock information temporarily unavailable.
20
| Quantity | Unit price | Per Pack |
|---|---|---|
| 20 - 80 | € 0.182 | € 3.64 |
| 100 - 480 | € 0.127 | € 2.54 |
| 500 - 980 | € 0.08 | € 1.60 |
| 1000+ | € 0.077 | € 1.54 |
