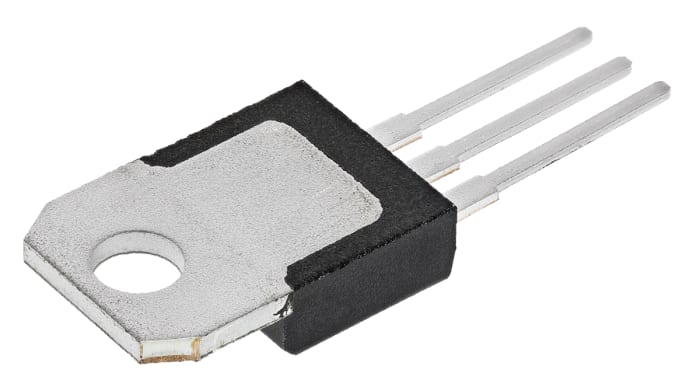

STMicroelectronics Through Hole, 3-Pin, TRIAC 800 V, Gate Trigger 1.3 V
Technical Document
Specifications
Brand
STMicroelectronicsProduct Type
TRIAC
Rated Average On-State Current Irms
12A
Mount Type
Through Hole
Package Type
TO-220
Maximum Gate Trigger Current Igt
50mA
Repetitive Peak Reverse Voltage VDRM
800V
Surge Current Rating
126A
Pin Count
3
Maximum Gate Trigger Voltage Vgt
1.3V
Configuration
Single
Maximum Holding Current Ih
50mA
Peak Gate Power Dissipation
1W
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
125°C
Length
10.4mm
Width
4.6 mm
Height
15.9mm
Standards/Approvals
No
Repetitive Peak Off-State Current
5mA
Peak On-State Voltage
1.55V
Automotive Standard
No
Product details
TRIAC, 8A to 12A, STMicroelectronics
TRIACs, STMicroelectronics
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 7.13
€ 1.426 Each (In a Pack of 5) (Exc. VAT)
Standard
5
€ 7.13
€ 1.426 Each (In a Pack of 5) (Exc. VAT)
Stock information temporarily unavailable.
Standard
5
| Quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 20 | € 1.426 | € 7.13 |
| 25 - 45 | € 1.334 | € 6.67 |
| 50 - 120 | € 1.266 | € 6.33 |
| 125 - 245 | € 1.197 | € 5.99 |
| 250+ | € 1.138 | € 5.69 |
