SMC Vacuum Generator

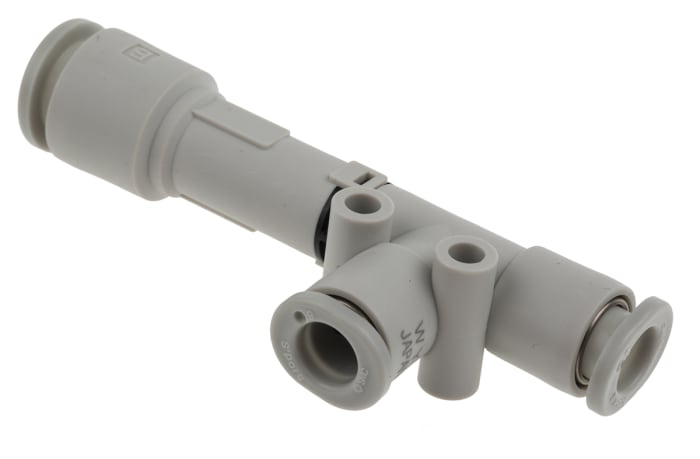

SMC Vacuum Generator, 1mm Nozzle Diameter - ZH10DLA-06-06-08

This vacuum generator is a Compact pneumatic ejector designed to create vacuum from compressed Air for automation and handling tasks. It operates with soft nylon, nylon or polyurethane tubing and is intended for use where small, lightweight vacuum sources are required. The unit accepts one-touch pneumatic connections and is suitable for moderate temperature environments in industrial settings.

Features & Benefits

• Nozzle Ø1.0mm delivers stable suction performance
  Maximum vacuum -48 kPa suitable for light part pick-up
  Flow rate 52 l/min (ANR) supports continuous operation
  One-touch Ø6 and Ø8 ports simplify tubing installation
  Operates with Air up to 50 °C for typical factory conditions

Applications

• Suitable for pick-and-place of electronic components
  Ideal for vacuum hold-down in assembly jigs
  used with pneumatic grippers in automation cells
  Can be used for small material transfer in production lines

What connections are provided for supply and vacuum lines?

The device uses one-touch fittings with a Ø8mm pneumatic supply port and a Ø6mm pneumatic vacuum port to allow quick hose assembly.

Which exhaust arrangement is used and how does it affect installation?

An exhaust port accepts one-touch Ø8 fitting

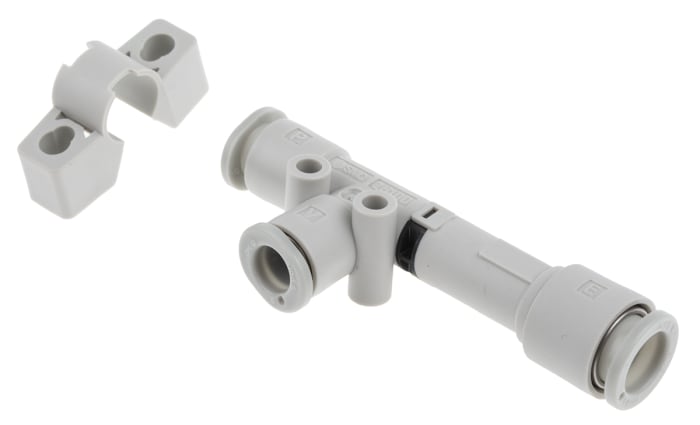

bracket mounting is available and the box style may be supplied without a silencer to suit Compact installations.

What temperature limits should be observed during use?

The unit is rated for service with pressure medium and ambient temperatures between -5 °C and 50 °C, so it should not be used outside that range.

What materials are compatible for the tubing supply and vacuum lines?

Recommended tubing materials are soft nylon, nylon or polyurethane to ensure proper sealing with the one-touch connectors.
