Technical Documents
Specifications
Brand
SMCProduct Type
Pneumatic Manual Control Valve
Control Mechanism
Push Button
Connection Thread Standard
5 mm
Series
VR51
Control Button/Switch Colour
Urban White, Urban Grey
Maximum Operating Pressure
1 Mpa
Body Material
Die Cast Aluminium
Maximum Flow Rate
1L/s
Valve Function
3/2
Minimum Operating Temperature
-5°C
Maximum Operating Temperature
50°C
Standards/Approvals
No
Number of Ports
3
Model Number
III B
Thread Size
2.5 mm
Country of Origin
Japan
Product Details

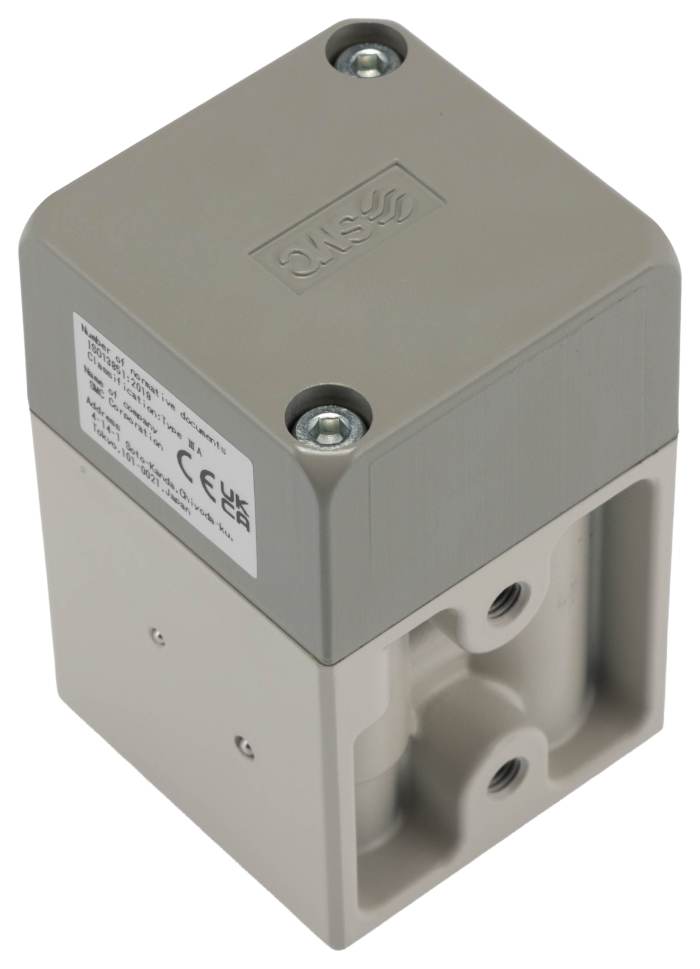

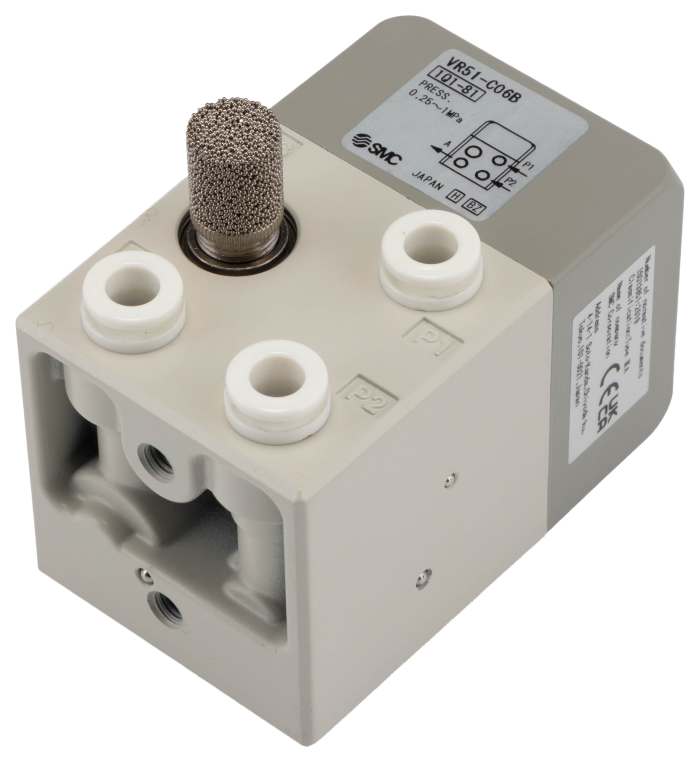

The SMC VR51 series 3/2 ports two-hand control valve with bracket has outputs with two-handed simultaneous operation. It prevents accidents whereby the operator's hands get caught or trapped by requiring both the hands to initialize operations. The VR51 can be installed, set up and configured as part of a safety circuit. For example, between two pushbutton-operated valves, an air-operated valve and a pneumatic cylinder, within a pneumatic control system.
Stock information temporarily unavailable.
€ 367.36
€ 367.36 Each (Exc. VAT)
1
€ 367.36
€ 367.36 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 367.36 |
| 5 - 9 | € 345.74 |
| 10+ | € 331.35 |
