SMC KQ2 Series Push-in Push-in

SMC KQ2 Series Pneumatic Fitting, 8mm Push-In Connector A, 10 Bar Maximum Operating Pressure - KQ2H08-00A

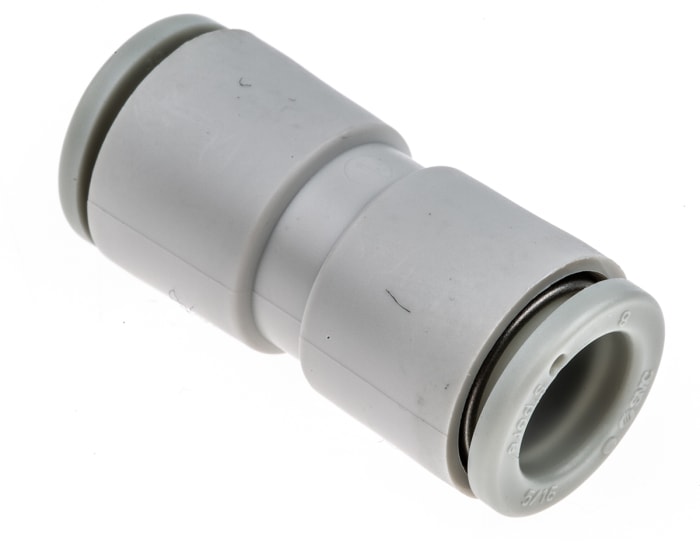

This pneumatic fitting is a robust straight tube-to-tube adaptor, designed specifically for seamless integration within pneumatic systems. Featuring an 8mm push-in connector at both ends, it ensures reliable air flow through its durable materials, including PBT for the body and brass for the threads. This fitting operates efficiently within a temperature range of -5 °C to +60 °C and supports a maximum operating pressure of 10 bar.

Features & Benefits

• Push-in design allows for quick and easy installation
• Reliable tube-to-tube connection prevents air leaks
• Suitable for high-pressure applications up to 10 bar
• Constructed from brass for enhanced durability
• Accommodates a temperature range of -5 °C to +60 °C
• Ideal for various automation and mechanical setups

Applications

• Utilised in pneumatic systems requiring reliable connection
• Employed in automation machinery for air supply
• Suitable for low to high-pressure in manufacturing
• Used within electrical and mechanical assembly processes

How does the push-in mechanism facilitate installation and maintenance?

The push-in mechanism allows quick connections without the need for additional tools, simplifying setup and providing ease of access for maintenance tasks.

What materials are used in the construction, and how do they contribute to performance?

The body is made of PBT, providing resilience against wear, while the brass threads enhance durability, making it suitable for various pneumatic environments.

What is the significance of the operating pressure limit for this fitting?

The fitting's maximum operating pressure of 10 bar ensures it can withstand high-stress applications without risking damage or failure, which is essential for maintaining system integrity.
