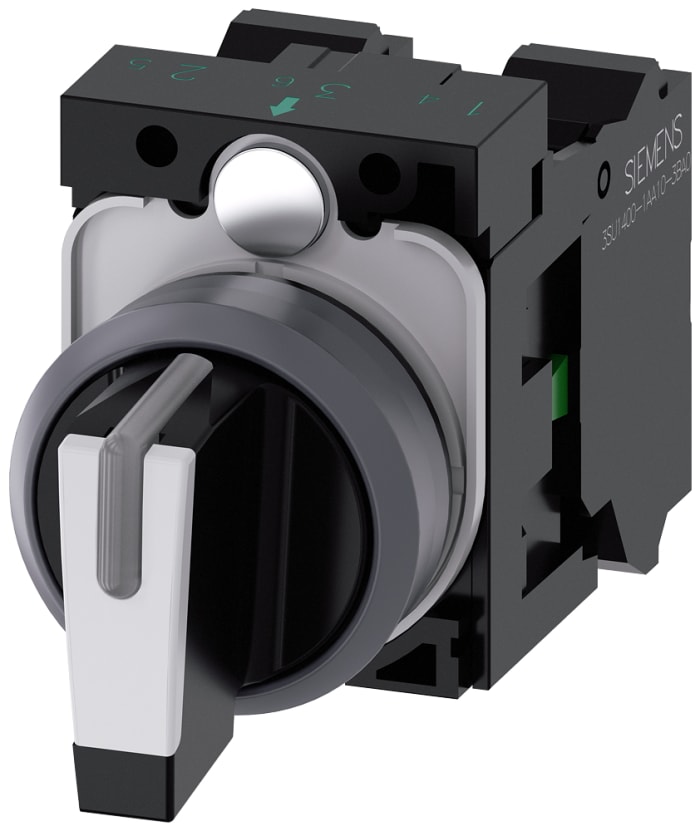

Siemens Short Black Handle Selector Switch - (SPDT) 22 mm Cutout Diameter Illuminated 3 Positions
Technical Document
Specifications
Brand
SiemensProduct Type
Selector Switch
Number of Positions
3
Actuator Type
Short Black Handle
Contact Configuration
SPDT
IP Rating
IP69, IP67, IP66
Angle of Throw
45 °
Series
SIRIUS ACT 3SU11
Cutout Diameter
22mm
Illuminated
Yes
Standards/Approvals
RoHS
Switch Operation
Latching
Country of Origin
Germany
