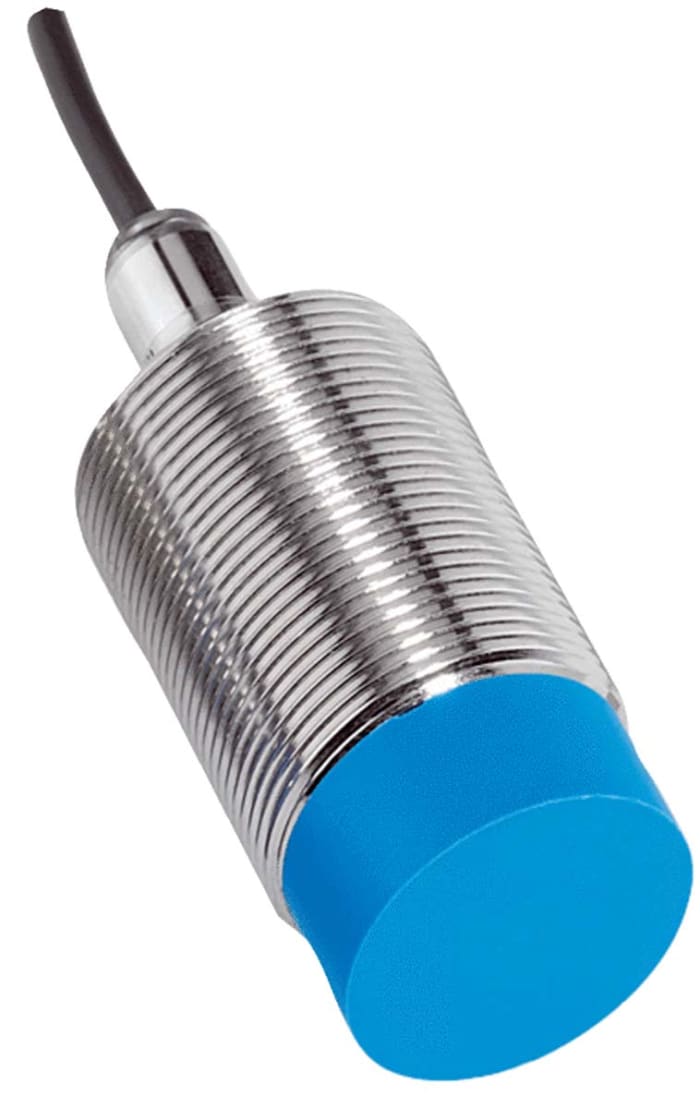

SICK IME30-20NDSZY2S Threaded Barrel Inductive Proximity Sensor, M30 x 1.5 2-Wire IME30 30V 20 mm 30 V dc 100mA

Overview

At a glance

• Types: M8 to M30
• Extended sensing ranges: 1.5 mm to 38 mm
• Electrical configuration: DC 3-/4-wire, DC 2-wire
• Enclosure rating: IP 67
• Temperature range: –25 °C to +75 °C
• Nickel-plated brass housing; plastic sensing face

Your Benefit

• High machine availability thanks to rugged design
• Highly cost-efficient thanks to low purchase costs
• Wide selection available thanks to extensive standard portfolio
• High positioning accuracy thanks to precise switching behavior

SICK’s inductive sensors offer precise detection, less downtime and a long service life. The inductive IME sensors pack high technology into the smallest of spaces. The integrated ASIC chip enables digital adjustment after the end of the manufacturing process. The saving of values in the ASIC ensures highly precise switching points and very high repeatability of values – for any number of production runs. IM sensors are completely encapsulated with hotmelt molding, which greatly increases shock and vibration resistance. The customer benefits from high positioning accuracy in the machine and long-term reliability.

Applications

• Presence detection for car body parts
• Presence check for components
• Positioning tool carriers
• Positioning the dashboard in the work station
• Checking presence
• Non-contact detection
• Presence check for racks
• Detecting end of film reliably
• Breakage detection on heating strip
• Position monitoring at the setup mechanism
• Monitoring of dancer position for the film tension
• Position monitoring at the setup mechanism
• Monitoring of dancer position for the film tension
• Position detection
• Non-contact detection with inductive proximity sensor
• Height positioning in sheet metal storage
• Automated part infeed and outfeed
• End position detection
• Detection of the wooden board inside the saw
• Gripper function monitoring
• Positioning workpiece carriers
• Identifying bar codes on workpiece carriers

• Position monitoring at an indexing station
• End of spool detection of solar cell connector strings in stringer machine
• Magazine positioning solutions for different solar panel sizes
• Shoe sorter pin control
• Telescopic arm and finger positioning
• Detection of trays in vertical storage systems
• Positioning the baggage shuttle's lifting forks
• Monitoring the position of roll-down gates
• Measurement of freight objects
• Monitoring the position of the roll-down gate
• Simple detection of the end positions and relevant intermediate positions of the load handling device
• Measuring forklift heights for productive product handling with process reliability
• Door leaf detection on elevator doors
• Zone detection in elevator shafts
• Position determination on a revolving door
• Door leaf detection on automatic sliding doors
• Speed monitoring in escalators with inductive proximity sensors
• Monitoring of tilting position on basic oxygen furnace

Notes

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
