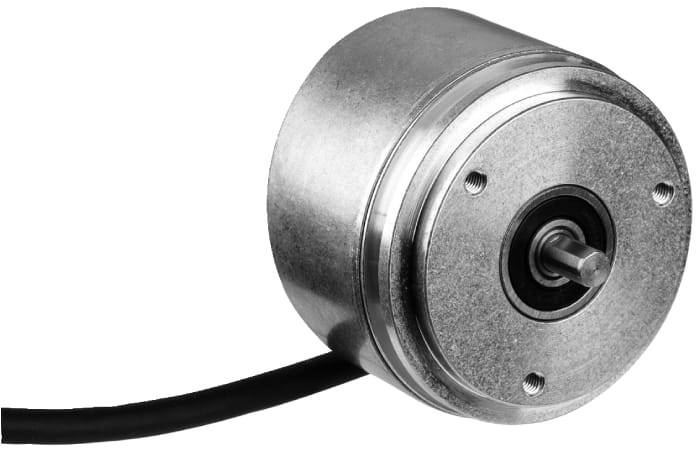

SICK DFS60B Series Incremental Incremental Encoder 32V dc, 10000 ppr ppr, TTL, HTL Signal, Solid Type, 6 mm Shaft

SICK DFS60 Series Incremental Encoder, 10000 Pulses Per Revolution, Solid Shaft Type - DFS60B-S1PK10000 / 1036757

This incremental encoder is designed for precision in various industrial applications. With a shaft diameter of 6mm and an overall height of 43.1mm, this solid shaft encoder operates effectively within a supply voltage range of 5 to 32 V DC. It ensures reliable performance in harsh environments, operating efficiently within a temperature range from -30°C to +100°C.

Features & Benefits

• Features an IP65 and IP67 rating for protection against dust and water
  Capable of a switching frequency of up to 600 kHz for Rapid data transmission

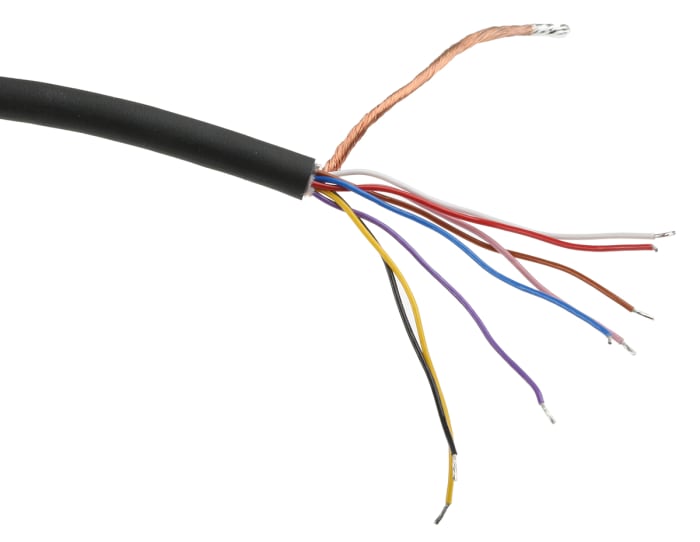

  Reliable cable connection type simplifies installation within industrial settings
  Maintains optimal performance even at extreme temperatures for diverse usage

Applications

• Ideal for motion control in automation systems
  Used for position feedback in robotics and machinery
  Suitable for linear and rotary positioning
  Utilised in conveyor system monitoring and control
  Effective in CNC machinery for precise movement tracking

What operational temperature range can be expected from this device?

It functions effectively in environments with temperatures ranging from -30°C to +100°C, ensuring reliability in various conditions.

How does the output signal type affect compatibility with systems?

The encoder is compatible with both HTL and TTL signal types, enabling it to integrate seamlessly with a variety of control systems.

What is the significance of having a high Pulse count per revolution?

The 10,000 pulses per revolution ensure high-resolution tracking, enhancing accuracy in applications where precise position feedback is critical.

How is the installation process streamlined for this encoder?

The device features a straightforward cable connection type, simplifying installation and integration into existing systems while ensuring secure connections.
