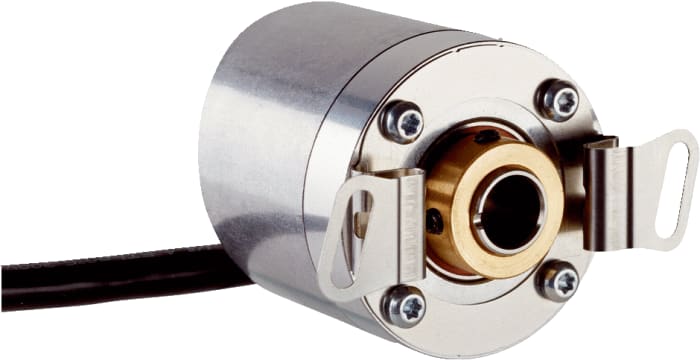

SICK DBS36 Core Series Incremental Incremental Encoder 30V, 1000 ppr ppr, HTL Signal, Hollow Type, 8 mm Shaft

SICK DBS36 Core Series Incremental Encoder, 1000 Pulses Per Revolution, 8mm Shaft Diameter - DBS36E-BBEP01000 / 1064687

This incremental encoder is a high-precision device designed for various applications within automation and industrial sectors. With a Compact design measuring 37mm in height, 37mm in width, and 45.4mm in depth, it offers seamless integration where space is limited. The encoder operates on a wide supply voltage range of 7 to 30 V, ensuring versatility across different systems. It features a hollow shaft with an 8mm diameter, making installation straightforward and efficient.

Features & Benefits

• Provides 1000 pulses per revolution for accurate position sensing
  HTL output signal enables reliable communication with control systems
  Maximum revolutions of 8000 rpm for dynamic performance
  Designed for easy cable connection, facilitating quick setup and maintenance

Applications

• Utilised in motion control systems where precise feedback is critical
  Applied in robotics for accurate position tracking and movement
  Used in conveyor systems to monitor speed and position
  Integrated into manufacturing equipment for process automation
  Implemented in packaging machines for efficient operation

What is the significance of having 1000 pulses per revolution?

A resolution of 1000 pulses per revolution allows for detailed position feedback, essential in applications requiring high accuracy, such as robotics and CNC machinery.

How does the HTL output signal enhance the encoder's functionality?

The HTL output signal ensures a robust communication Interface with control systems, minimising signal degradation over long distances and providing reliable performance in industrial settings.

Can this encoder operate in extreme temperatures?

Yes, it has a wide operational temperature range from -20°C to +85°C, making it suitable for diverse environmental conditions commonly found in various industries.

What benefits does the IP65 rating offer?

The IP65 rating indicates that the encoder is dust-tight and protected against water jets, ensuring durability and longevity in environments with exposure to moisture and particles.
