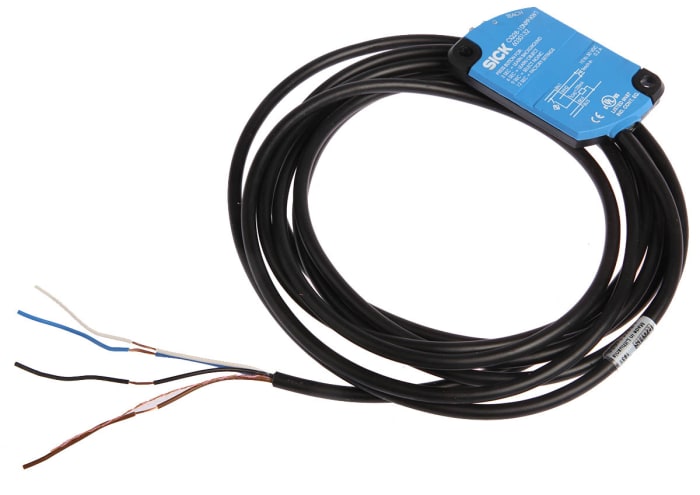

SICK CQ28-10NPP-KW1 Rectangular Capacitive Proximity Sensor CQ 10 mm PNP 200mA 30V 30 V dc

Name: SICK CQ28-10NPP-KW1 Rectangular Capacitive Proximity Sensor CQ 10 mm PNP 200mA 30V 30 V dc
Brand: SICK
SKU: 0218995
Availability: LimitedAvailability

RS Stock No.: 218-995Brand: SICKManufacturers Part No.: CQ28-10NPP-KW1

View all in Proximity Sensors

Technical Documents

Specifications

Brand

Sick

Product Type

Capacitive Proximity Sensor

Body Style

Rectangular

Length

46mm

IP Rating

IP68

Terminal Type

Pre-Cabled

Mount Type

Non-Flush

Width

28mm

Maximum Supply Voltage

30V

Housing Material

PBT, Plastic

Maximum Detection

10mm

Minimum Operating Temperature

-20°C

Maximum DC Voltage

30V dc

Maximum Operating Temperature

85°C

Hazardous Area Certification

Standards/Approvals

CE, cULus

Depth

5.5mm

Maximum Switching Frequency

10Hz

Shielding

Unshielded

Series

Switching Current

200mA

Output Type

PNP

Country of Origin

Lithuania

Product Details

CQ28 Capacitive Proximity Sensor

The CQ28 capacitive sensor features an innovative flat and thin housing shape. Designed to offer a solution for all non-contact level detection and control applications with a variety of media (liquids, solids, powders, etc.), it is intended for use in a wide variety of industry branches, including packaging, plastics, agriculture, food and beverage, etc.

Ultra thin plastic PBT housing for mounting flexibility
Adjustable sensing range from 1mm to 10mm (non-flush mounting)
High EMC immunity (to EN60947-5-2)
Teach-in set-up via pushbutton, or externally via wire (COM input)
NO and NC outputs (programmable)
Display LED
Reverse polarity protection
PNP or NPN versions available
Time delay: 300ms
Dimensions: H 46mm x W 5.5mm x D 28mm
