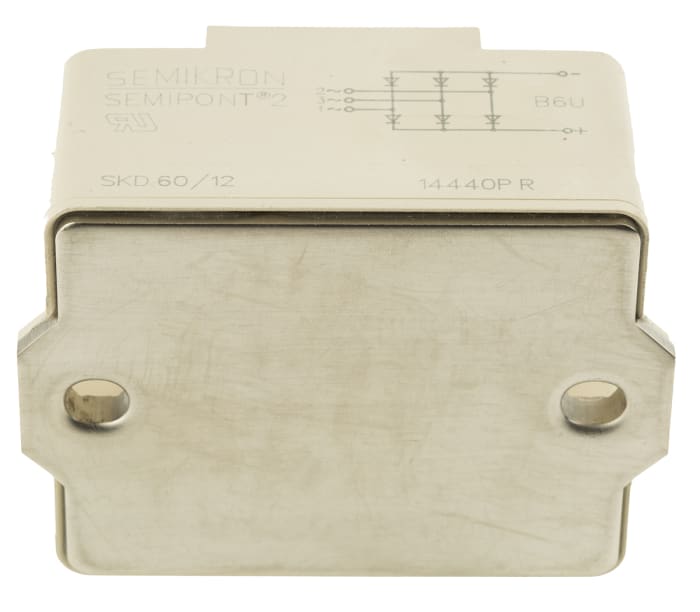

Semikron Danfoss Bridge Rectifier Module, 1200 V 1 kA, 5-Pin Single
Technical Document
Specifications
Brand
Semikron DanfossProduct Type
Bridge Rectifier Module
Peak Reverse Repetitive Voltage Vrrm
1200V
Mount Type
Panel
Package Type
SEMIPONT2
Number of Phases
3
Pin Count
5
Configuration
Single
Maximum Operating Temperature
125°C
Forward Current If
60A
Minimum Operating Temperature
-40°C
Peak Non-Repetitive Forward Surge Current Ifsm
1kA
Peak Forward Voltage Vf
1.6V
Width
48 mm
Peak Reverse Current Ir
500μA
Height
34mm
Length
65mm
Standards/Approvals
No
Series
SKD 60
Automotive Standard
No
Country of Origin
Italy
Product details
Three Phase Bridge Rectifiers, SEMIPONT®2/3/4 Series
Three phase rectifiers for power supplies, variable frequency drives, DC motor field supplies
Robust plastic case with screw terminals
Isolated metal base plate
Easy chassis mounting
Approvals
UL recognized E63532
Bridge Rectifiers - Semikron
