Technical Documents
Specifications
Brand
SeframProduct Type
Multifunction Tester
Automatic RCD Test
Yes
Model Number
MW9325
Non-Tripping
Yes
Insulation Test Voltage
265V
Maximum Voltage Measurement
265V ac
Test Type
Loop Impedance, TRMS Voltage, RCD Test, SSR Isolated Flyback Converter, socket test
Earth Resistance Measurement
Yes
Downloadable Data
Yes
RCD Test Type
Type A, AC
Length
81.5mm
Weight
110g
Standards/Approvals
IEC/EN610102, IEC/EN615576, IEC/EN 615576, IEC/EN610101, IEC/EN61321
Width
70mm
Height
83mm
Test Standards
EN61557-6, IEC, EN 61010-1
Minimum Operating Temperature
5°C
Maximum Operating Temperature
40°C
Display Type
1.77 in TFT
Safety Category Level
CAT III
Safety Category Voltage
300V
Country of Origin
China
Product Details

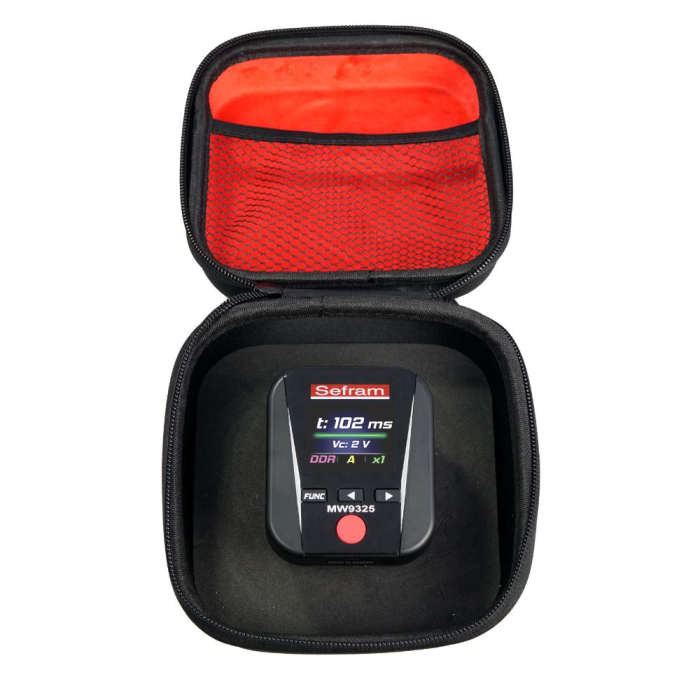

The Sefram MW9325 pocket multifunction tester is a compact yet powerful device, empowering electricians, and maintenance professionals to safeguard electrical installations with unwavering confidence. It is compliant with IEC/EN61557-3 and IEC/EN61557-6 standards and is powered directly by the socket without the need for batteries.
The MW9325 functionalities elevate it to a versatile tool. Its TRMS multimeter functionality enables accurate AC and DC voltage measurements, while its continuity and resistance tests ensure the integrity of electrical circuits.
Beyond standard checks, the MW9325 delves deeper into the electrical landscape, scrutinising the safety of earth connections and leakage currents. Its ground resistance measurement tool detects potential ground fault hazards, while its insulation resistance test unveils the integrity of insulation shielding.
The Sefram Pocket Multifunction Tester is a unique, pocket-sized device that combines the functionality of an electrical installation tester. The device is equipped with a "SUPERCAP" component that keeps it switched on and allows for visualising measurements after disconnecting it. It also has an internal memory that saves measurements.
