Technical Documents
Specifications
Brand
Schneider ElectricProduct Type
Key Switch Head
Series
Harmony
Cutout Diameter
22mm
Number of Positions
3
Key Type
455
Switch Operation
Spring Return to Centre
IP Rating
IP69K, IP67, IP66
Angle of Throw
45 °
Number of Keys
2
Mechanical Life
1000000Cycles
Hazardous Area Certification
No
Standards/Approvals
EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, UL 508, JIS C8201-5-1, JIS C8201-1, CSA C22.2 No 14, CE
Country of Origin
France
Product Details

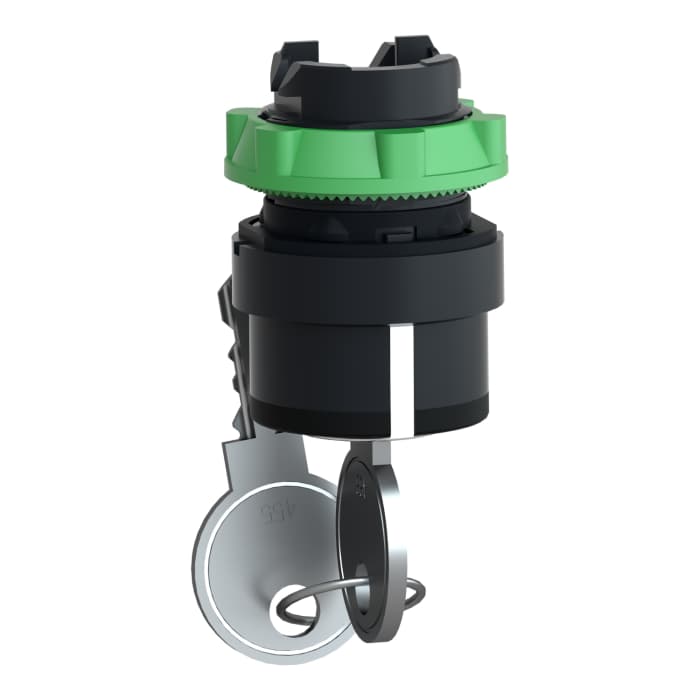

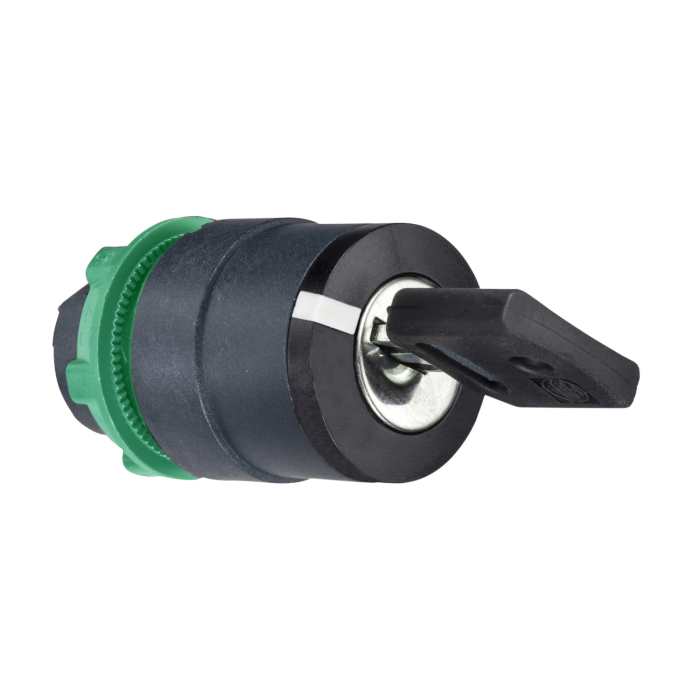

This key switch head is a robust component designed for use in automation and industrial applications. With a cutout diameter of 22mm, it features a spring return mechanism, accommodating three distinct positions. The device is rated to operate between -40 °C and +70 °C, making it suitable for a wide range of environments. Notably, this switch head provides an IP66, IP67, and IP69K protection rating, ensuring durability in challenging conditions.
This switch head uses the 455 type key for secure operation, allowing only designated individuals to engage or disengage equipment.
The various IP ratings of IP66, IP67, and IP69K indicate its excellent resistance against water and dust ingress, enabling reliable performance in harsh environments.
With a mechanical life of 1,000,000 cycles, this product offers long-term reliability, reducing the need for frequent replacements and lowering maintenance costs.
Yes, it is designed to function optimally within a temperature range of -40 °C to +70 °C, making it suitable for both cold and hot environments.
When installing, ensure that the mounting area is clean and properly prepared to fit the 22mm cutout to maintain its watertight integrity.
IEC, JIS
UL, CSA
