Schneider Electric 3-Pole Panel Mount Isolator Switch -, IP65, IP20, 40A

Schneider Electric VARIO Series Isolator Switch, 3P Poles, 40A Maximum Current - VCCF2

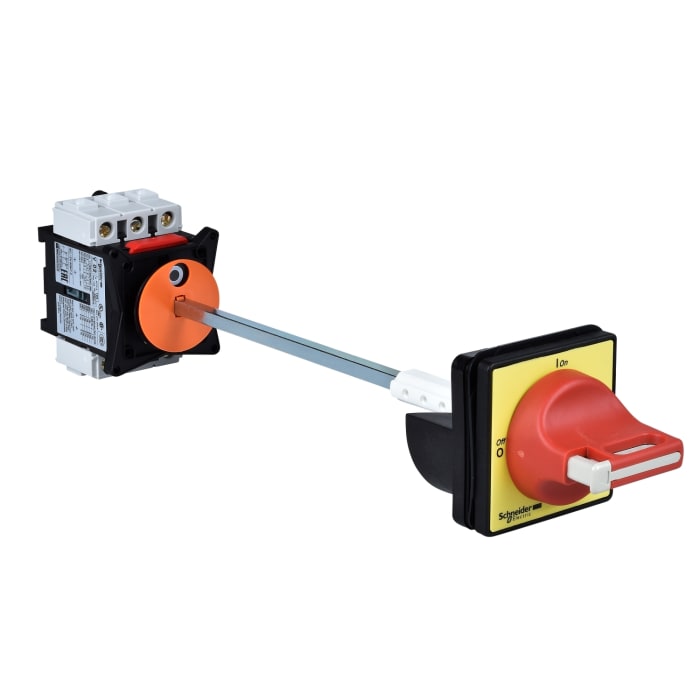

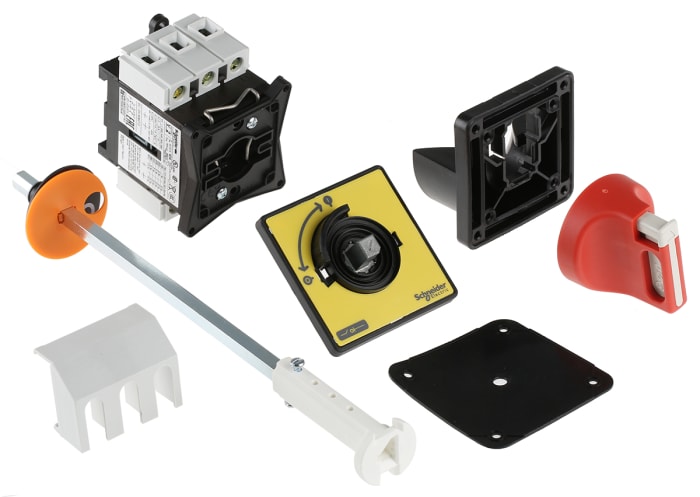

This isolator switch is a robust 3 Pole model designed for reliable control in electrical applications. With a maximum current rating of 40A and an operating voltage of 690V AC, this panel mount switch offers impressive performance. The compact dimensions of 60mm x 60mm x 74mm ensure easy installation while providing high durability across a wide temperature range of -20 °C to +50 °C.

Features & Benefits

• Designed to accommodate 3NO contacts for effective control
• Panel mount capability for straightforward installation and support
• Rated breaking capacity enables operation at high loads
• IP20 and IP65 ratings provide versatility in environmental conditions
• Handle accepts up to three padlocks for enhanced safety
• Mechanical and electrical durability with 100,000 cycles each

Applications

• Suitable for emergency stop installations in industrial settings
• Used with control panels to manage motor operations
• Ideal for isolation in heavy machinery
• Employed in manufacturing environments for enhanced safety control

What type of electrical load can be handled effectively with this device?

This model can handle a conventional free air thermal current of 40A, making it suitable for various applications, including motor control and power distribution.

How does the IP rating impact the installation choices for this switch?

The IP20 rating indicates protection against solid objects greater than 12mm, while the IP65 rating safeguards against dust and low-pressure water jets, allowing use in both indoor and outdoor installations.

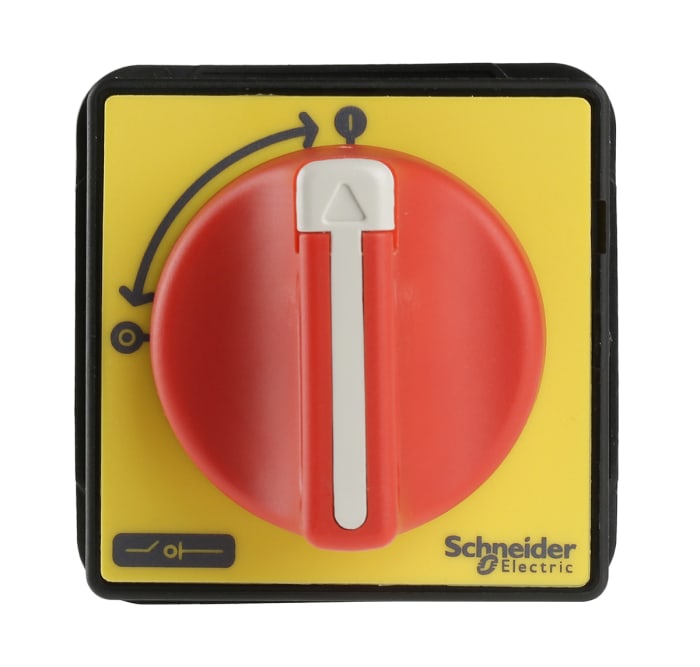

What locking mechanisms can be utilised with the handle of this switch?

The switch handle is designed to accept one to three padlocks with shackle diameters between 4mm and 8mm, ensuring secure isolation during maintenance.
