Schneider Electric PLC Expansion Module for use with Modicon M251, Modicon M241, Modicon M221

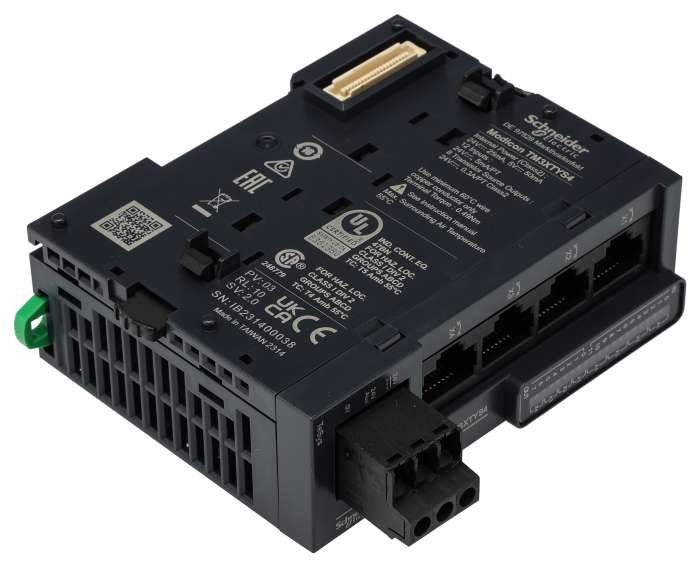

Schneider Electric PLC Expansion Module, Parallel Interface Type, Up To 10ms Turn-on Response Time - Modicon TM3 Series - TM3XTYS4

Boost the performance of your industrial control system with this PLC expansion module from Schneider Electric. It's a parallel interface device that enables the transfer of data between a PLC and external sensors. As it features 12 inputs and 8 outputs, it can accommodate multiple signal transmissions at once. The module is compatible with controllers from the Modicon M221, Modicon M241 and Modicon M251 ranges, so it's a versatile piece of kit. Built-in resistance to shock and vibration means this component holds its own in demanding working conditions.

Features & Benefits

• 500V AC insulation between RJ45 connectors and internal logic for electrical safety
• Current limiter to shield output from overload
• IP20 rating indicates protection against solid objects bigger than 12mm
• Automatic reset for convenient operation
• Turn-on and turn-off response times of less than 10ms to deliver rapid switching

Applications

• Agricultural equipment
• Assembly lines
• Manufacturing industry
• Marine engineering

How do I connect my devices to this module?

This module features four RJ45 connectors that are designed to accommodate your motor starters, while the removable screw terminals let you attach the electrical conductors.
