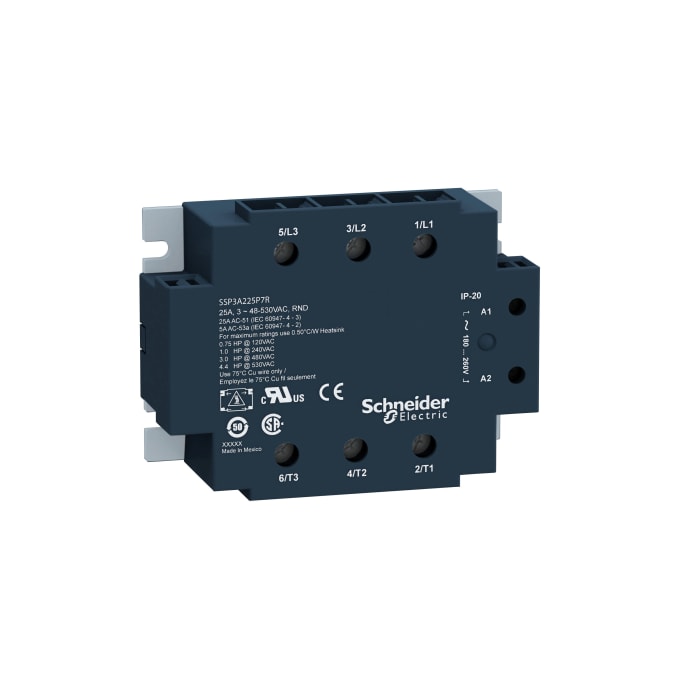

Schneider Electric Harmony Relay Series Solid State Relay, 50 A Load, Panel Mount, 530 V ac Load, 36 V ac Control
Technical Document
Specifications
Brand
Schneider ElectricMaximum Load Current
50 A
Mounting Type
Panel Mount
Maximum Load Voltage
530 V ac
Minimum Load Voltage
48 V ac
Minimum Control Voltage
18 V ac
Maximum Control Voltage
36 V ac
Switching Type
AC
Control Voltage Range
18 → 36 V ac
Minimum Load Current
0.1 A
Number of Poles
3
Terminal Type
Screw
Contact Configuration
3P-NO
Output Device
SCR
Relay Type
Three Channel Three Phase
Load Voltage Range
48 → 530V ac
Maximum Turn On Time
20ms
Series
Harmony Relay
Better World Verification
Green Premium
Better World Product (Find out more)
Yes
Dimensions
101.3 x 97.8 x 35.5mm
Operating Temperature Range
-40 → +80°C
Height
35.5mm
Off State Leakage Current
3 mA
Length
101.3mm
Standards Met
CE, CSA, UL
Special Features
For Robust Applications Requiring Considerable Heat Dissipation, SSP & SSRP Ranges Panel Mount Individually
Capacitance
8pF
Depth
97.8mm
Country of Origin
Mexico
Product details
Zelio SSP3 Solid State Power Relays
Schneider Electric Zelio solid state relays provide a compact and innovative solution for a wide variety of applications with interfacing control and load switching. The SSP Series panel mount relays that offer complete solid-state control and switching solutions. SSP relays offer zero voltage switching for resistive loads and random switching for inductive loads. With single phase and 3 phase options and current ratings ranging from 6 A to 55 A.
Easy maintenance
High switching frequency
Resistance to shock, vibration and contamination
Long life span
Schneider Solid State Relays
Stock information temporarily unavailable.
€ 196.42
€ 196.42 Each (Exc. VAT)
1
€ 196.42
€ 196.42 Each (Exc. VAT)
Stock information temporarily unavailable.
1
