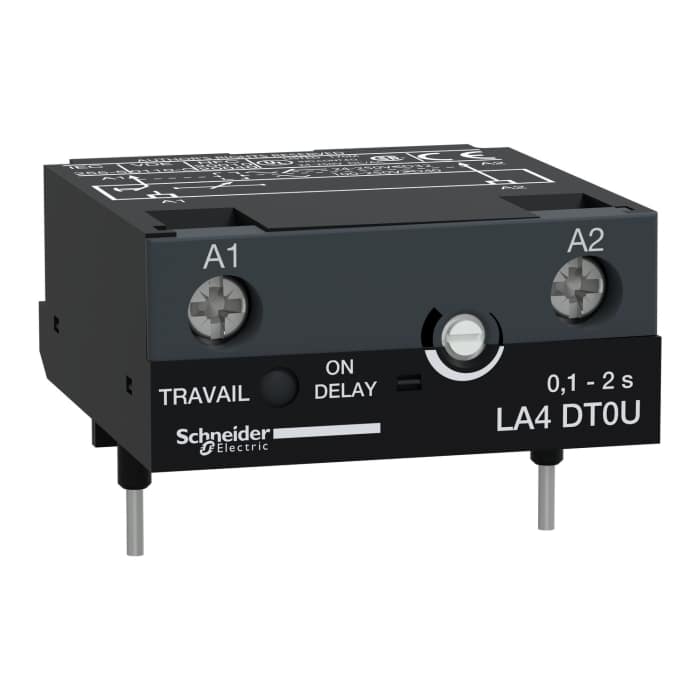

Schneider Electric TeSyS CA Contactor Timer for use with LC1D

Electronic Timers

• Placed in the control circuit, and mounted directly onto the contactor or control relay
• Incorporates coil suppression and LED to signal the time delay period
• Delay-ON timer is initiated by using the coil signal. Delay-OFF requires a separate supply and is initiated by a 40ms pulse
• Coil voltage 240V
