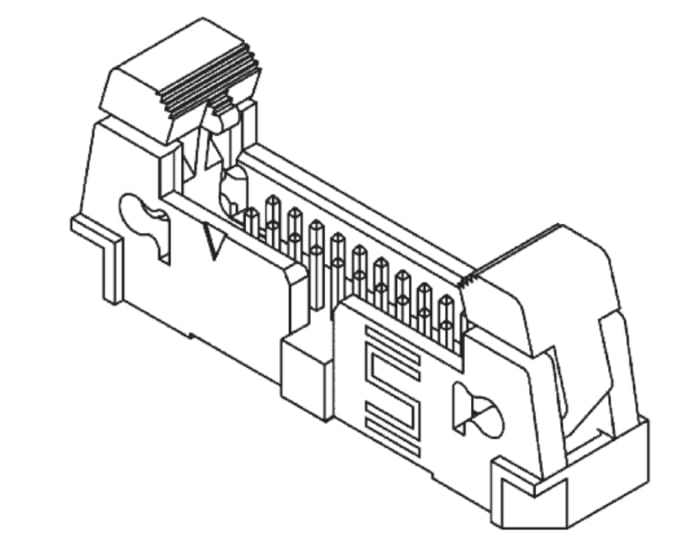

Samtec EHF Series Straight Through Hole PCB Header, 10 Contact(s), 1.27 mm Pitch, 2 Row, Shrouded
Technical Document
Specifications
Brand
SamtecProduct Type
PCB Header
Series
EHF
Current
1.75A
Pitch
1.27mm
Housing Material
Liquid Crystal Polymer
Number of Contacts
10
Number of Rows
2
Orientation
Straight
Shrouded/Unshrouded
Shrouded
Connector System
Wire-to-Board
Mount Type
Through Hole
Contact Material
Phosphor Bronze
Contact Plating
Gold
Row Pitch
1.27mm
Termination Type
Solder
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
125°C
Contact Gender
Male
Tail Pin Length
2.71mm
Standards/Approvals
No
Mating Pin Length
3.05mm
Product details
Samtec EHF Series 1.27mm Shrouded IDC PCB Ejector Headers
EHF series 1.27mm pitch shrouded double row PCB IDC headers with polarizing notch for accurate mating, ejector latches and gold plated contacts. These EHF series 1.27mm PCB ejector headers are available as right angle PCB through hole mounting or PCB SMT mount with up to 50 contacts. For mating connectors see FFSD (without strain relief) and FFTP series IDC socket cable assemblies.
