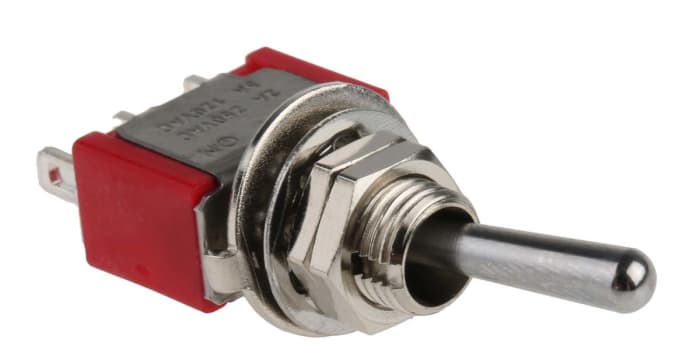

RS PRO Toggle Switch, Panel Mount, On-On, SPDT, Solder Terminal
Technical Document
Specifications
Brand
RS ProContact Configuration
SPDT
Switch Operation
On-On
Contact Current Rating
5 A @ 250 V ac
Mounting Type
Panel Mount
Terminal Type
Solder
Actuator Length
10.41mm
Actuator Material
Brass
Contact Material
Copper Alloy
Contact Resistance
0.01Ω
Minimum Operating Temperature
-30°C
Operating Temperature Range
-30 → +85°C
Maximum Operating Temperature
+85°C
Standards Met
RoHS & Lead Free
Mechanical Life
40000Cycles
Country of Origin
China
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
$ 5.02
$ 5.02 Each (Exc. VAT)
1
$ 5.02
$ 5.02 Each (Exc. VAT)
Stock information temporarily unavailable.
1
Stock information temporarily unavailable.
| Quantity | Unit price |
|---|---|
| 1 - 49 | $ 5.02 |
| 50 - 99 | $ 4.05 |
| 100 - 249 | $ 3.13 |
| 250 - 499 | $ 3.03 |
| 500+ | $ 2.96 |
