Technical Documents
Specifications
Brand
RS ProInlet Connection Type
Threaded
Product Type
Check Valve
Sub Type
Single
Outlet Connection Type
Threaded
Inlet Port Size
1 to 1/2 in
Body Material
Stainless Steel
Maximum Operating Pressure
14 bar
Outlet Port Size
1 to 1/2 in
Inlet Thread Standard
BSP
Inlet Port Gender
Female
Minimum Operating Temperature
-20°C
Outlet Thread Standard
BSP
Outlet Port Gender
Female
Maximum Operating Temperature
200°C
Standards/Approvals
No
Country of Origin
China
Product Details

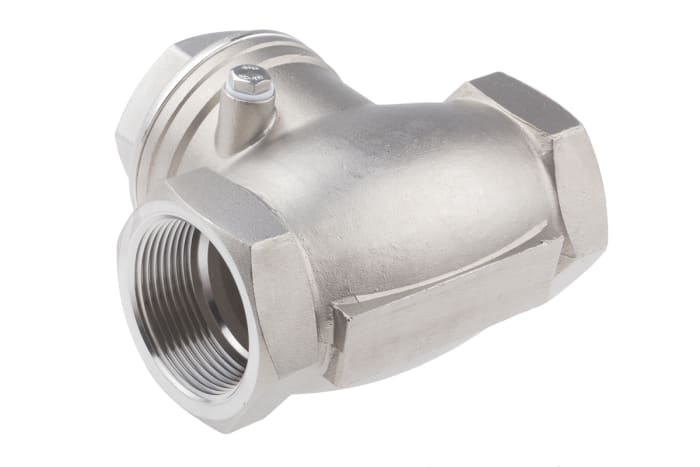

Use this non-return valve from RS PRO in your system to ensure that liquids flow only in the intended direction. To seal the valve, it uses an interior plate that's free to swing but that pushes on a seal when liquid is flowing in the incorrect direction.
The valve is easy to use as the flow direction is clearly labelled on the side. It has a 1-1/2-inch threaded design on each end, so it's simple to connect to compatible fluid systems.
The valve's stainless steel material ensures it's long-lasting, even when used in tough industrial environments. It's an appropriate choice for manipulating water flow or for use with hydraulic networks of up to 14 bar.
Stock information temporarily unavailable.
€ 187.71
€ 187.71 Each (Exc. VAT)
1
€ 187.71
€ 187.71 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 187.71 |
| 5 - 9 | € 183.78 |
| 10+ | € 177.96 |
