Technical Documents
Specifications
Brand
RS ProProduct Type
Emergency Stop Push Button
Mount Type
Surface Mount
Contact Configuration
1 NO/1 NC
Housing Material
Thermoplastic
Push Button Actuation
Pull Release
Series
SA
Illuminated
No
IP Rating
IP65
Colour
Red
Terminal Type
Screw
Contact DC Voltage
250V dc
Contact Current
10A
Contact AC Voltage
24V ac
Hazardous Area Certification
No
Standards/Approvals
IEC 60947-5-1 and EN 60947-5-1
Head Diameter
90mm
Safety Contacts
1 NO/1 NC
Push Button Material
Plastic
Country of Origin
Italy
Product Details
RS PRO proudly introduces a range of mushroom head push button complete units. These E-Stop units are also known as foot and palm switches which are commonly used in industrial control stations. Each pushbutton is designed to take an aggressive impact from the palm of your hand or foot to shut down operations.

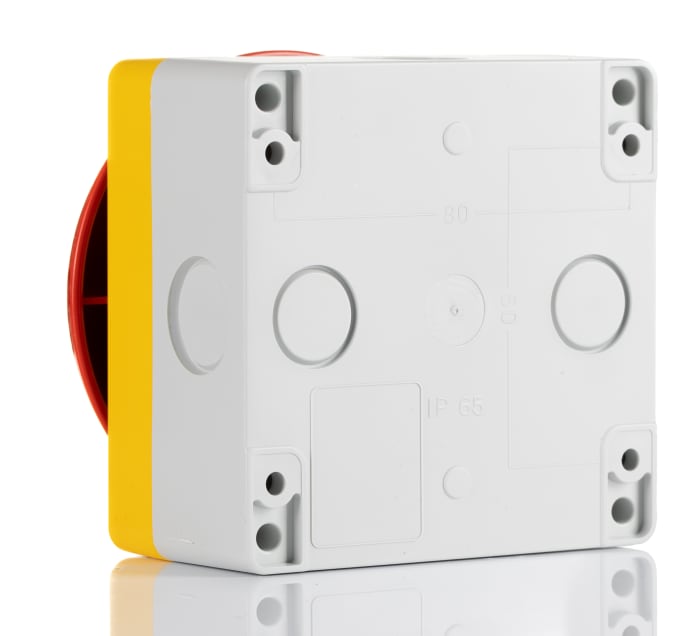

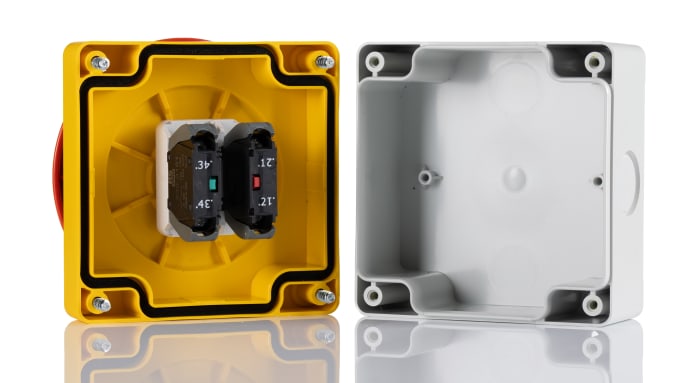

Upon inspection, the mushroom head is non-illuminated, contains microswitch contacts and each device is made from a strong thermoplastic material that incorporates M20 knockout holes. In addition, the IP65 rating means there is protection from jets of water from all angles.
RS PRO offers a comprehensive range of emergency stop push button complete units. Each unit is high-quality and available in a variety of contact configurations designed to suit your application. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards, theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
